How do 2023 NEC rules affect enclosed disconnect switch access?
Overview
Disconnect switches enclosed within structures with accessible doors provide a convenient means to de-energize multiple circuits. However, this accessibility also presents safety hazards, as individuals may inadvertently encounter live conductors if the door opens too easily. To address this concern, the 2023 NEC introduces Section 404.30, which imposes stricter construction standards for switches situated in enclosures with doors. For instance, specialized tools may be required to access these switches. These new requirements are designed to enhance safety for enclosed switches, minimizing the likelihood of unauthorized access and promoting safer installations.
Applying the 2023 Code
Disconnect switches are often positioned in easily accessible locations to serve various equipment, including HVAC systems, water heaters, and closet air handlers. Many of these switches are designed to be easily opened, even when the equipment is energized, without requiring tools.
In the 2023 NEC, a new Section 404.30 was introduced to specifically address the accessibility of such switches. This section mandates that switch mechanisms housed within enclosures with doors that, when opened, expose live, uninsulated parts must be constructed in a way that restricts access to the switch interior when it is in the closed position (meaning line and load terminals are energized). Access to the switch interior while it is closed must either require the use of a tool or be of an approved design that offers equivalent protection against unauthorized access by unqualified individuals.
The introduction of this new section aims to enhance safety measures for enclosed switches, ensuring they are more secure and less susceptible to accidental access. This change is part of a broader initiative to phase out less secure disconnect switches, thereby elevating safety standards for these vital electrical components across all industries.
What’s New for the 2023 NEC?
The table below presents a comparison between the 2020 NEC and the 2023 NEC regarding Section 404.30.
2020 NEC |
2023 NEC |

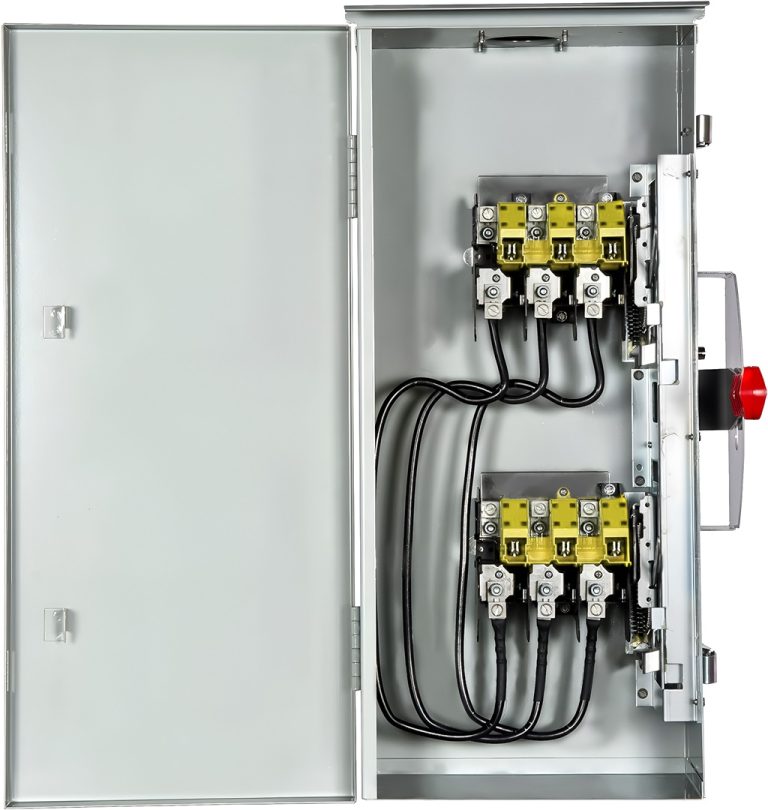

| No reference was provided for switch enclosures with doors in NEC 2020. | 404.30 Switch Enclosures With Doors
Switch mechanisms mounted within enclosures with doors that, when opened, expose uninsulated live parts shall be constructed so that when the switch is in the closed position access to the switch interior is restricted. Access to the interior with the switch in the closed position shall require the use of a tool or an approved design that provides equivalent protection from access by unqualified persons.
|
