How to Replace a Circuit Breaker: A Professional’s Guide
Pre-Replacement Assessment: Safety and Component Verification
Before any tools are picked up, a comprehensive assessment is crucial. This phase is all about mitigating risk and ensuring you have the correct components for a successful and compliant job. Mishandling a breaker panel 200 amp or any energized equipment can have catastrophic consequences.
The Critical First Step: Safety, De-energization, and Accessibility
Safety is non-negotiable. The first action is always to de-energize the circuit. For a single circuit, this may involve shutting off an upstream breaker. For work inside the main electrical service panel, de-energize the branch circuit at the breaker and apply accepted lockout/tagout procedures; note that line-side service entrance conductors connected to the main breaker will remain live unless a full utility disconnection has been performed, so take additional arc-flash precautions when working in service equipment. After shutting off the power, use a calibrated multimeter to test the lugs and the electrical bus bar to verify a zero-energy state. This is a core principle of arc flash safety. It is also important to consider physical access to the equipment, as outlined by evolving NEC standards. For more details, see our lesson on how NEC 2023 has changed accessibility rules for circuit breakers and switches.
Identifying the Correct Overcurrent Protection Device (OCPD)
Replacing a breaker is not a one-size-fits-all task. You must install a replacement that is specifically listed and labeled for use in that particular load center. Using the wrong breaker can lead to overheating, poor connections, and fire hazards. Key factors include:
- Brand and Type: Panel manufacturers list which breakers are approved for use in their load centers—use breakers that are specifically listed or identified for that panel. Brands such as Square D, Eaton, Siemens, and GE offer breakers, but do not install a breaker of a different brand unless that exact breaker model is explicitly listed or identified for that panel. Some older product lines may have replacement breakers available from current manufacturers, but compatibility must be verified by the panel manufacturer and the equipment listing.
- Amperage and Voltage: Match the rating precisely. A 20 amp breaker must replace a 20amp breaker. Common residential breaker sizes include the 15 amp breaker, 30 amp breaker, 40 amp breaker, and 50 amp breaker. Larger appliances may require a 60 amp breaker or 70 amp breaker. The main breaker in a modern home is often a 200 amp circuit breaker or 200 amperes breaker. For specifics on how codes affect these ratings, review our guide on how the 2023 NEC changes standard circuit breaker amp ratings.
- Ampere Interrupting Capacity (AIC): The AIC rating must be equal to or greater than the available fault current at the panel. This is a critical safety specification for the overcurrent protection device (OCPD), and NEC requires that equipment intended to interrupt current at fault levels be rated for the available fault current.
- Specialty Breakers: Be aware of needs for a GFCI breaker replacement, AFCI breaker installation, dual function breaker, tandem breakers (or “mini circuit breaker” types), a shunt trip breaker, or a lockable circuit breaker.
The Step-by-Step Guide to Replacing Electrical Circuit Breakers
Once safety is assured and you have the correct replacement breaker (verify the manufacturer listing for that panel), you can proceed with the physical replacement. Knowing how to change a breaker is a core skill.
- Locate and Isolate: If not already done, use a circuit breaker finder (also called a circuit tracer or electrical circuit tracer) to positively identify the correct breaker. Turn off the main breaker in the 200 amp main breaker panel or the appropriate upstream disconnect.
- Remove the Panel Cover: Carefully unscrew and remove the electrical panel cover. Store the screws safely. These covers are sometimes referred to as electrical panel box covers.
- Verify De-energization Again: With the cover off, use your multimeter to test the breaker terminals and busbars one last time to ensure they are not live. This is a good time for a visual busbar inspection.
- Disconnect and Remove Old Breaker: Loosen the terminal screw and disconnect the electrical feeder or branch circuit wire. For a multi wire branch circuit, ensure all associated conductors are identified. Firmly grip the old breaker and rock it outward to unclip it from the electrical bus bar. Some older breakers may require more force or a slightly different removal technique; consult manufacturer instructions.

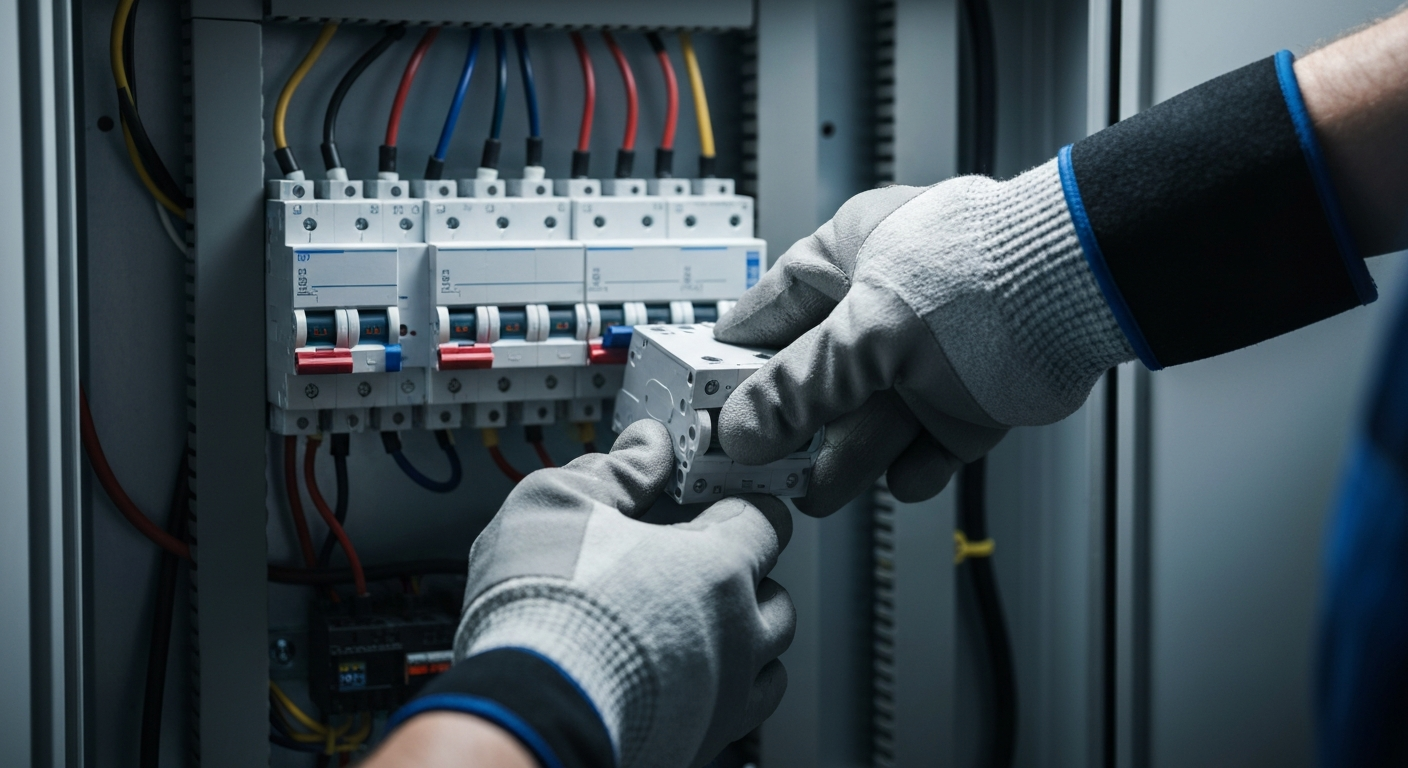

- Install the New Breaker: Align the new breaker with the slot in the electrical panel board. Press it firmly into place until it seats and clicks onto the busbar. You should feel a solid connection.
- Connect Wire and Torque: Insert the branch circuit wire into the breaker’s terminal. Using a calibrated torque tool, tighten the screw to the manufacturer’s specified torque per their instructions (NEC requires that terminal torque values be used and that an approved means be used to achieve the indicated torque). This is one of the most critical steps; improper torque is a leading cause of loose connections and failure.
- Update Schedule and Re-energize: Replace the panel cover. Update the panel schedule (or panelboard schedule) with a clear description of the circuit. Turn the 200 amp breaker main back on, followed by the newly installed branch circuit breaker. Verify the circuit is operating correctly.
Special Considerations for Panel Work
Not all breaker boxes are the same. Professionals must understand the nuances of different setups, from a simple 100 amp breaker box to a complex commercial system with a 400 amp meter base.
Main Panels vs. Subpanels
A main electrical 200 amp panel is where the service entrance conductors terminate. A sub panel (or subpanel) is a smaller panel fed from the main. When performing work in a 100 amp sub panel, 60 amp sub panel, or 50 amp sub panel, remember that grounds and neutrals must be separated in subpanels: the neutral bus must be isolated from the equipment grounding bus and the panel enclosure unless the panel is the service disconnecting means and the main bonding jumper is present. Referencing a sub panel wiring diagram is crucial for correct sub panel wiring. You may also encounter an outdoor sub panel for sheds or pools, or specific disconnects like an air conditioner disconnect (also called a disconnect for ac unit or ac disconnect box).
Obsolete and Problematic Panels
Some panels require more than a simple breaker swap; they demand a full electrical panel replacement. Systems with known documented failure modes (for example, some Federal Pacific or similar legacy installations) are frequently recommended for replacement due to reports of breakers failing to trip. For these systems, replacement is often the safest professional recommendation. Other older brands may have available listed replacement breakers or be in acceptable condition, but each situation must be evaluated for listing, condition, and suitability. The rules around this can be complex; see our guide on how 2023 NEC rules differ for replacing panelboards. The cost to change electrical panel is an investment in safety when a panel is unsafe or unsupported.
Troubleshooting Common Breaker Issues
Even after a replacement, issues can arise. Knowing how to reset breaker is the first step, but deeper diagnosis is often needed.
Why Does My Breaker Keep Tripping?
This is a frequent question. A breaker that keeps tripping is doing its job. The cause is usually one of three things: an overloaded circuit, a short circuit, or a ground fault. Specific issues, like a “Hisense 8000 tripping breaker” or an “ac circuit breaker keeps tripping,” often point to a fault within the appliance itself. The question “why does my circuit breaker keep tripping” requires a systematic diagnostic approach, not just another breaker replacement.
How to Test a Circuit Breaker
If you suspect a breaker is faulty, you need to know how to test a breaker. After removing it from the panel, you can perform a basic check using a multimeter set to continuity (ohms). With the breaker in the “ON” position, you should have continuity between the line and load terminals. In the “OFF” position, it should read open (no continuity). While a failed continuity test confirms the breaker must be replaced, passing this test is not comprehensive. A continuity check does not confirm that the breaker will trip under overload or short-circuit conditions (that function is covered by the breaker’s listing and standards such as UL 489), so a full evaluation or replacement per manufacturer/listing instructions is required when doubt exists.
Primary Sources & Governing Standards
- NFPA 70, National Electrical Code (NEC): The authoritative standard for all electrical installation and safety practices in the United States (see NEC Articles on grounding, equipment, and working clearances).
- OSHA 1910.147, The Control of Hazardous Energy (Lockout/Tagout): Defines required procedures for disabling machinery or equipment to prevent the release of hazardous energy during service or maintenance.
- Manufacturer Installation Instructions & UL Standards (e.g., UL 489): Provide critical, model-specific information on breaker compatibility, installation procedures, and required torque specifications for terminal connections.
Key Takeaways for Professional Circuit Breaker Replacement
- Safety First: Always de-energize and use lockout/tagout procedures. Verify with a meter before touching any component.
- Correct Component is Critical: The replacement breaker must be the correct model listed or identified for that specific panel and have a sufficient Ampere Interrupting Capacity (AIC) for the available fault current.
- Torque Matters: Use a calibrated torque tool to meet the manufacturer’s breaker torque specifications and follow NEC/manufacturer guidance.
- Document Everything: Always update the panel schedule after performing work.
- Know When to Replace, Not Repair: For panels with documented unsafe behavior or no available listed replacements, a full electrical panel replacement is often the safest option.
Ready to deepen your expertise? Master panel work and safety procedures with our advanced electrical courses.
Frequently Asked Questions (FAQ)
- What are the main steps for a circuit breaker replacement?
- The primary steps are: 1) Turn off the main power and apply LOTO procedures. 2) Remove the electrical panel cover. 3) Verify de-energization with a multimeter. 4) Disconnect the wire and remove the old breaker. 5) Install the new, correct breaker. 6) Connect the wire and torque to spec. 7) Replace the cover, update the panel schedule, and re-energize.
- Why is my new 20 amp breaker still tripping?
- If a new 20 amp breaker trips, the breaker is likely not the problem. The issue lies within the circuit itself. You either have an overload (too many devices drawing power), a short circuit (hot wire touching neutral or ground), or a ground fault. An appliance fault, like an ac circuit breaker keeps tripping, is a common culprit.
- Can I replace a Federal Pacific breaker with a modern one?
- No. You should not retrofit modern breakers into an installation where the panel or listed documentation does not support them. For panels with known unsafe performance or without listed replacement devices, the safe and code-compliant solution is a complete electrical panel replacement by a qualified electrician.
- What’s the difference between a main breaker panel and a sub panel?
- A main breaker panel (e.g., a 200 amp electrical panel) is where the main utility service connects to the building. A sub panel (or electrical sub panel) is a secondary panel fed from a breaker in the main panel. A key difference in sub panel wiring is that the neutral and ground bars must be kept separate (unbonded) in the subpanel; the main bonding jumper is at the service equipment.
- How do I perform routine load center maintenance?
- Load center maintenance involves a scheduled shutdown for visual inspection, cleaning, and testing. This includes checking for signs of overheating or corrosion on the electrical bus bar, verifying terminal tightness with a calibrated torque tool (infrared scanning is recommended for thermal inspection), testing GFCI/AFCI breakers as required, and ensuring the panelboard schedule is accurate. This is essential to identify and fix electrical panel issues before they become critical.
