What Is a Wire Ampacity Chart?
Introduction
The ampacity chart, a cornerstone of NFPA 70 (NEC), guides electricians in selecting conductors to safely carry current, preventing overheating and ensuring reliability. Proper use is vital for compliance and occupant safety.
What Is a Wire Ampacity Chart?
Ampacity is the maximum current a conductor can carry without exceeding its temperature rating (NEC Article 100). A wire ampacity chart (NEC Table 310.16) specifies this capacity based on:
- Material: Copper (higher ampacity) or aluminum.
- Insulation Rating: 60°C, 75°C, or 90°C.
- Wire Gauge (AWG): Larger diameter (smaller AWG) allows higher current.
Overloading risks insulation failure or fires, while undersized wires cause voltage drop, damaging equipment.
Mastering Wire Ampacity Charts for Safe Electrical Installations
Using wire ampacity charts ensures NEC-compliant installations, preventing hazards like overheating. Follow these steps to select the right conductor size per NFPA 70 for safe, efficient systems.
Identify Wire Size: Determine AWG for the load.
Check Insulation Rating: Select 60°C, 75°C, or 90°C column based on insulation.
Apply Correction Factors (NEC Tables 310.15(B)(2)(a), 310.15(B)(3)(a)):
Ambient Temperature: De-rate for >30°C (86°F).
Bundling: Reduce ampacity for >3 conductors in a conduit.
Confirm with NEC: Ensure compliance with NFPA 70.

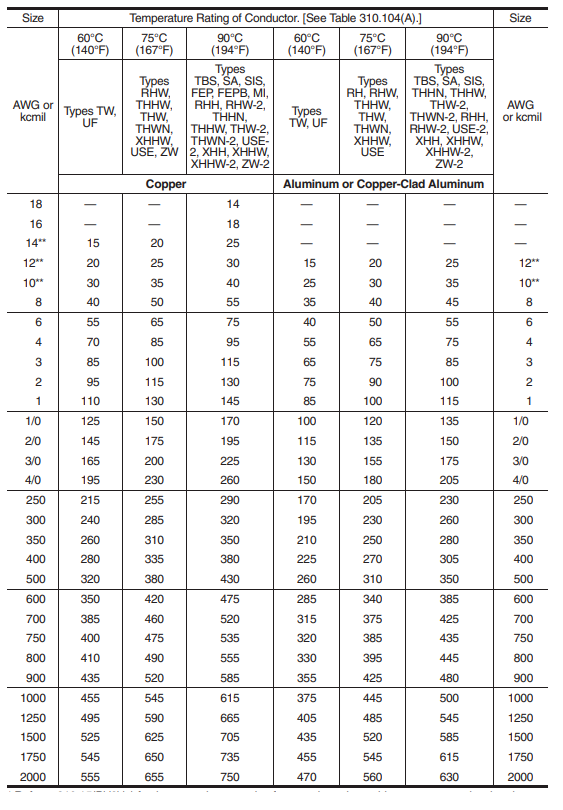

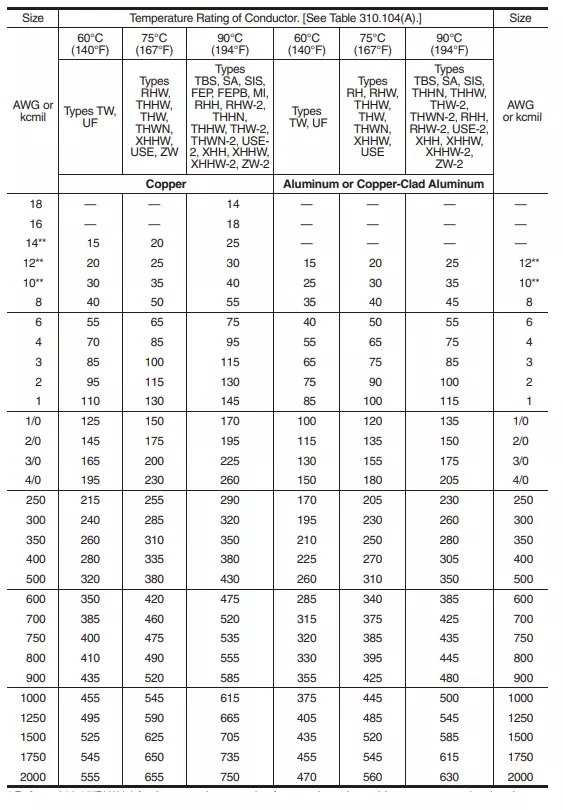

Example: A 20A branch circuit requires conductors with ≥20A ampacity after corrections (NEC 210.19). Chart here is adapted from the National Electrical Code (NEC) as published by the National Fire Protection Association (https://www.nfpa.org/).
Ensuring Safe Electrical Systems with Ampacity Charts
Correct wire sizing per ampacity charts prevents overheating, ensuring electrical safety. Adhering to NFPA 70 and NFPA 70E safeguards systems and occupants.
Safety Protocols
- De-energize: Verify with voltage tester; use lock-out/tag-out (LOTO) (NFPA 70E 120.2, 120.5).
- Correct Sizing: Match wire to load; never undersize (NEC 310.15).
- Overcurrent Protection: Size breakers to protect the lowest-ampacity conductor (NEC 240.4).
- Secure Connections: Tighten terminals to avoid heat buildup (NEC 110.14).
Conclusion
The ampacity chart is a critical safety tool for NFPA 70-compliant wire sizing. By applying correction factors and safety protocols, electricians ensure safe, reliable systems, protecting property and lives.
