How to Install an Electric Tankless Water Heater: Wiring Guide

Quick Summary: The Essentials of Electric Tankless Water Heater Installation

A successful electric tankless water heater installation hinges on a thorough understanding of its significant electrical demands. Unlike a typical storage (tank-type) electric water heater, many whole-house tankless units require one or more dedicated high-amperage 240 V circuits (or an appropriately rated three-phase supply) and careful planning. The core of the installation involves performing a detailed electrical load calculation to confirm the existing service can handle the new load, potentially necessitating an electrical service upgrade. You must size the wire and breaker according to the manufacturer’s specifications and NEC guidelines, which often means running new, heavy-gauge cable from the panel. A properly sized dedicated circuit for a tankless water heater is not just a recommendation—it’s a critical safety and performance requirement. This guide will walk you through the essential NEC requirements and practical steps for a compliant and safe installation of any electric tankless water heater.

Pre-Installation Assessment: Electrical Load Calculation and Service Capacity

Before a single wire is pulled, the most critical step in any electric tankless hot water heater project is a comprehensive site assessment. An electric on demand water heater often represents a high-amperage load and, depending on expected operating duty, may be treated as a continuous load if the heater is likely to operate for 3 hours or more at a time. Whether it is handled as a continuous load affects sizing (NEC requires continuous loads to be accounted for at 125% when sizing conductors and overcurrent protection). Because duty cycles and manufacturer instructions vary, confirm whether a specific model should be treated as continuous before applying the 125% rule. Failing to account for this can lead to overloaded services, nuisance tripping, and unsafe conditions.

The first task is to perform an electrical load calculation as outlined in NEC Article 220. This will determine if the current electrical panel capacity and overall service can accommodate the new load. For residential applications, you must understand the latest standards for dwelling unit load calculations to ensure compliance. If the calculation shows the existing service is insufficient, a conversation with the homeowner about an electrical service upgrade is necessary. This step cannot be skipped; it is fundamental to the safety and functionality of the tankless electric water heater.

Understanding NEC Tankless Water Heater Requirements

The National Electrical Code (NEC) provides the minimum safety standards for all electrical installations, including high-amperage appliance wiring for an electric instant water heater. The primary areas to consult are:

• NEC Article 422 (Appliances): Article 422 covers appliances generally. Appliances or equipment that are expected to operate as continuous loads (typically 3 hours or more) need to be handled using the continuous-load rules (which affect conductor and overcurrent sizing). Always follow the appliance manufacturer’s instructions when applying NEC rules.
• NEC Article 220 (Calculations): Governs the electrical load calculation for services and feeders.
• NEC Article 240 (Overcurrent Protection): Details the requirements for breakers and fuses.
• NEC Article 250 (Grounding and Bonding): Critical for safety—proper grounding and bonding must be followed to protect against shock hazards.

Adhering to these NEC tankless water heater requirements is mandatory for a compliant and safe installation of all electric hot water heaters. For local interpretations and amendments, always check with your AHJ.

Step-by-Step: Sizing the Breaker and Wire

Properly calculating the ampacity for a water heater and selecting the correct components is a methodical process. Here’s how to do it for a tankless water heater electric model:

1. Determine Total Wattage: Check the manufacturer’s nameplate on the unit. A whole-house model might have multiple heating stages or elements. For example, a unit could have multiple heating elements that sum to 27,000 W.
2. Calculate Full Load Amperage: Use the formula: Amps = Watts / Volts. For the 27,000 W example on a 240 V circuit: 27,000 W / 240 V = 112.5 A.
3. Apply the Continuous-Load Rule (if applicable): If the appliance is determined to be a continuous load (check manufacturer documentation and expected duty), multiply the amperage by 1.25. Example: 112.5 A × 1.25 = 140.6 A. This is the ampacity target for conductors and must be respected when selecting overcurrent protection and conductor sizes.
4. Select the Breaker: Pick the next standard breaker size that meets NEC rules and equipment ratings. For the 140.6 A result, the standard breaker size is 150 A. Confirm the breaker and the equipment terminals are rated for the chosen conductor temperature when using ampacity tables.
5. Determine Wire Gauge: Use NEC ampacity tables to pick conductor size based on the conductor’s temperature rating and the termination temperature rating. For an example 140.6 A continuous-load requirement, 1/0 AWG copper (with a 75°C termination rating) is commonly used because its ampacity meets or exceeds 150 A in the NEC tables. For smaller, lower-wattage point-of-use units, 6/2 NM-B (ampacity ~55 A at the 60°C column) paired with a 50 A breaker is a common installation—do not use a breaker larger than the conductor ampacity unless specifically allowed by the applicable NEC provision and the conductor and termination ratings.Exception and safety note: Always verify that the conductor ampacity at the temperature rating of the termination meets or exceeds the selected overcurrent device rating per NEC requirements, and confirm the equipment terminal temperature rating (often 60°C or 75°C). If the unit requires three-phase power, select a suitably rated three-pole breaker and size per phase load.

The Dedicated Circuit and Wiring Process

Nearly every whole-house electric tankless water heater requires one or more dedicated circuits. Due to their high power draw, they generally cannot share a circuit with other outlets or appliances. The installation involves running a new homerun (or homeruns) from the panel to the unit’s location. This is the essence of creating a dedicated circuit for a tankless water heater.

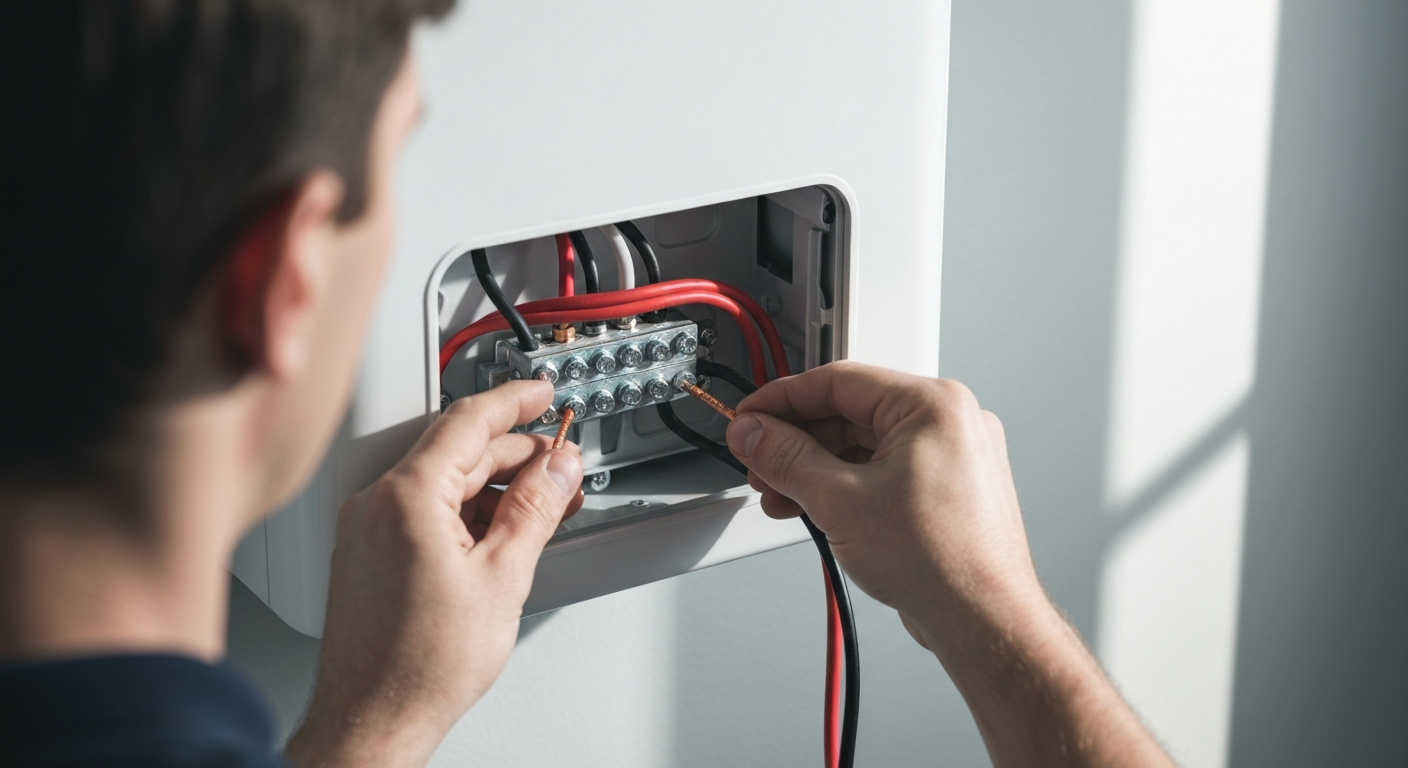

The process of 240V water heater wiring involves connecting the two hot conductors (typically black and red) to the double-pole breaker, the neutral (if required by the unit) and the grounding conductor to the grounding bus. At the appliance, follow the manufacturer’s wiring diagram for connecting the circuit conductors to the unit’s terminal lugs. For safety and code compliance, equipment must be hardwired when required by the manufacturer; plug-and-receptacle installations are only acceptable when the manufacturer specifically permits that configuration and local code allows it.

When to Install a Subpanel for a Tankless Water Heater

In some scenarios, adding a subpanel for a tankless water heater is the best solution. Consider this option if:

• The main electrical panel is full and has no physical space for the required large double-pole breaker(s).
• The unit is located far from the main panel, and running a large feeder to a nearby subpanel is more practical and cost-effective than multiple heavy-gauge branch circuits.
• You need to perform a voltage drop calculation and find that a shorter branch-circuit run from a subpanel is necessary to keep voltage drop within an acceptable limit (commonly 3% for branch circuits to loads, but confirm project-specific tolerances and AHJ requirements).

The principles for a subpanel feeder are similar to those for a main service: size the feeder for the load, provide proper overcurrent protection, and ensure grounding and bonding meet NEC requirements. For related high-power load sizing examples, see calculating high-power load requirements for other modern equipment.

As a professional, mastering the intricacies of high-amperage appliance wiring is essential for modern electrical work. Master high-power appliance installations with our advanced wiring courses.

Frequently Asked Questions (FAQ)

What size breaker and wire do I need for an electric tankless water heater installation?

The required breaker and wire size depends entirely on the unit’s wattage and voltage. You must calculate the full load amperage (Watts/Volts), determine whether the unit is a continuous load (if so, apply the 125% rule), and then select an appropriate breaker size that is compatible with the conductor ampacity and the equipment terminal ratings. Use the NEC ampacity tables (Article 310) and confirm terminal ratings before final selection.

Is a dedicated circuit for a tankless water heater always required by the NEC?

A dedicated circuit is required when the manufacturer calls for it or when the calculated load and NEC rules make it necessary (for safety and capacity). Because many tankless units have high, often continuous, demand, they generally require dedicated branch circuits sized to the unit’s specifications and NEC ampacity rules. Confirm with the manufacturer’s installation instructions and your AHJ.

Can my current electrical panel handle an electric tankless hot water heater?

This depends on the home’s existing electrical load and the panel’s rating. Perform an electrical load calculation (NEC Article 220) to determine if your electrical panel capacity is sufficient. If the calculation shows the new total load will exceed the rating of your service, an electrical service upgrade or alternate supply arrangement will be necessary.

What is the difference in wiring a standard electric water heater vs. an electric tankless model?

A standard tank-style electric water heater, typically with a 4,500 W element, draws around 18.75 A and is commonly wired with 10/2 conductors to a 30 A double-pole breaker after applying the continuous-load sizing rule. In contrast, a whole-house electric tankless water heater may draw over 100 A when operating at full capacity and often requires one or more large dedicated circuits, heavier conductors (for example 1/0 AWG copper or larger depending on the calculated ampacity and termination ratings), and potentially a service upgrade. Always calculate the exact load and select equipment to match.
