Managing Electrical Safety for Temporary Power on Job Sites: An Electrician’s Guide

Effectively managing temporary power safety on any construction or demolition job site is a non-negotiable responsibility for every qualified electrician. Proper implementation hinges on a deep understanding of core standards, primarily NEC Article 590 and OSHA regulations, to mitigate the significant risks of electrical shock, fire, and equipment damage. Key safety pillars include GFCI protection for many temporary receptacle outlets that are not part of permanent wiring installations and that are in use by personnel. NEC Article 590 also permits a documented Assured Equipment Grounding Conductor Program (AEGCP) as an alternative in certain temporary-installation situations, and NEC provides an informational reference to OSHA rules that a site program should align with. A thorough jobsite electrical hazard assessment must be performed before any work begins, covering everything from the power source—be it a utility feed or a generator with a proper transfer switch for generator—to the final point of use. This initial planning prevents common issues like a breaker keeps tripping due to overloads and ensures all components, from the grounding rod and bonding to the distribution panels, comply with NEC grounding and bonding requirements (Article 250) and applicable safety standards such as NFPA 70E. Ultimately, the goal is to create a robust, inspected, and properly maintained temporary power system that protects every worker on site.

The Regulatory Framework: NEC Article 590 and OSHA 1926.405

The foundation of temporary power safety rests on two key documents: the National Electrical Code (NEC) and OSHA standards. A common misconception is that “temporary” implies a lower standard of quality; in reality, it means the installation must adhere to a different, but equally strict, set of rules designed for its limited lifespan.

NEC Article 590 specifically governs temporary electrical power and lighting installations. It clarifies that while some allowances are made—such as specific permitted wiring methods for temporary use—all other relevant rules from the NEC still apply. Article 590 sets clear time constraints, permitting temporary power for the period of construction, remodeling, maintenance, repair, or demolition, and requires it be removed immediately upon completion of the project. For purposes like holiday decorative lighting, the code limits temporary use to 90 days.

Complementing the NEC, OSHA 1926.405 provides federal regulations for safe work practices involving temporary wiring on construction sites and complements NEC requirements. OSHA and the NEC together require that feeders and branch circuits be arranged and protected properly, that conductors be protected from physical damage, and that flexible cords are used appropriately (not as a substitute for fixed wiring in locations where permanent wiring is required). Together, the nec code book and OSHA standards create a comprehensive safety net for all job site electrical work.

Essential Protective Measures: GFCI and AEGCP

Protecting personnel from ground faults is one of the most critical aspects of temporary power safety. A ground fault occurs when an unintended path is created between a power source and a grounded surface, which can send hazardous current through a person’s body. NEC Article 590 requires ground-fault protection for many temporary receptacle outlets used by personnel, and NEC provides the option of an Assured Equipment Grounding Conductor Program (AEGCP) as a site program alternative when implemented and documented as required.

• GFCI Protection: A Ground-Fault Circuit-Interrupter, or GFCI, is a fast-acting device that monitors the current balance between the hot and neutral conductors. If it detects a leakage current of only a few milliamps (typically in the range of 4–6 mA for personnel protection), it de-energizes the circuit within milliseconds to limit shock hazard. NEC 590.6 generally requires GFCI protection for 125-volt, single-phase, 15-, 20-, and 30-ampere temporary receptacles that are not part of the permanent wiring and are in use by personnel; the code also provides requirements for receptacles on portable generators and for other temporary wiring situations.
• Assured Equipment Grounding Conductor Program (AEGCP): As an alternative to GFCI protection in certain temporary-installation scenarios, NEC Article 590 allows a written AEGCP. This is a procedural approach that involves rigorous and documented inspections and tests to ensure the integrity of the equipment grounding conductor in cord sets, cord-and-plug-connected equipment, and receptacles that are not part of the permanent wiring. The program must be continuously enforced at the site by one or more designated persons, and required tests (for continuity, proper attachment, and periodic intervals) must be performed and recorded. Unlike a GFCI, an AEGCP does not automatically de-energize a circuit during a fault but reduces risk by ensuring grounding continuity.

While both approaches are permissible in certain circumstances, GFCI protection provides automatic active protection that can stop a dangerous ground-fault event in progress, whereas an AEGCP relies on administrative controls and scheduled testing. When an AEGCP is used, a competent person must be designated to implement and maintain the program, with test records kept available on-site.

Components of a Safe Temporary Power System

A safe temporary power system is built from properly selected, installed, and maintained components. Every journeyman electrician and master electrician must be proficient in assembling these systems to withstand the harsh conditions of a job site.

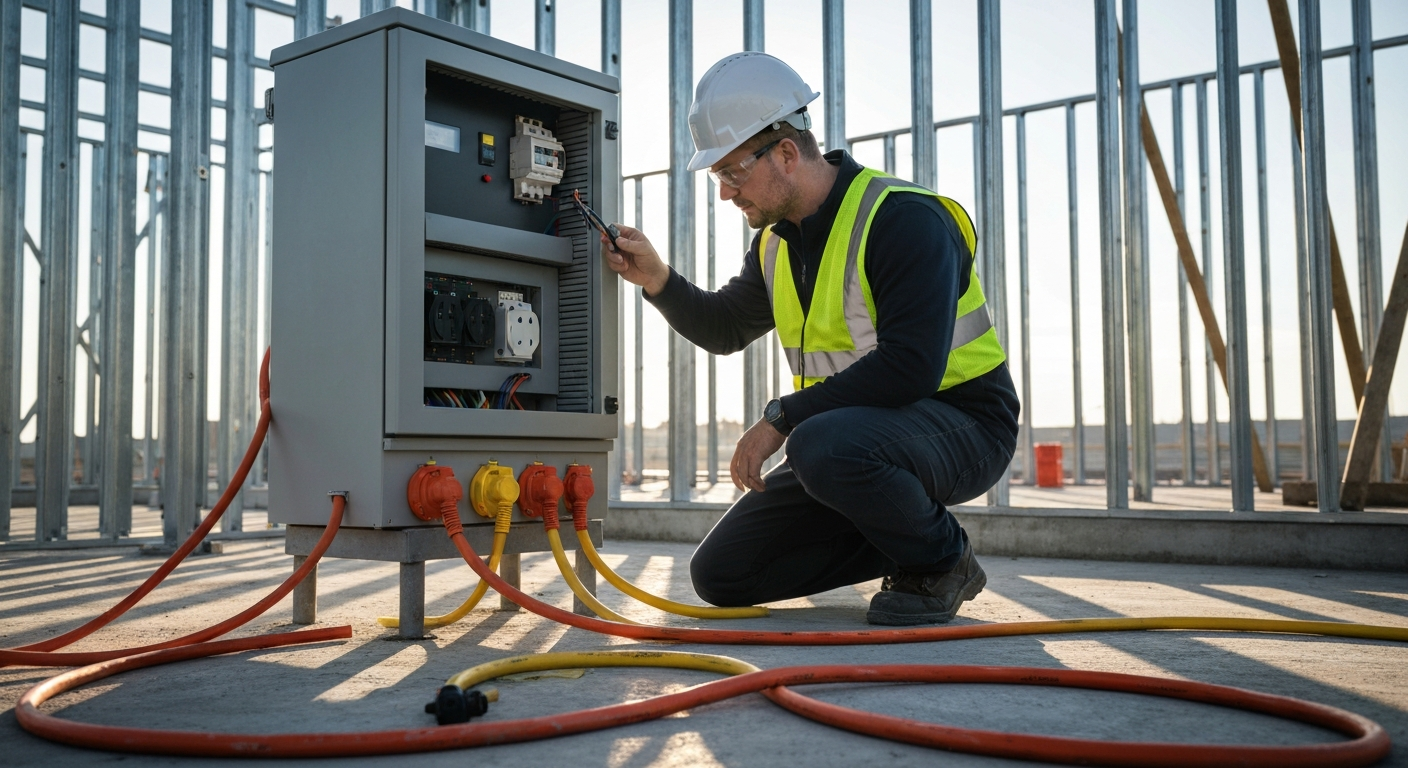

• Power Source and Distribution: The system starts at the source, which could be a utility service or a portable generator. When using a generator, a proper transfer switch for generator or an interlock kit is crucial to prevent back-feeding the utility grid. From the source, power is routed through portable power distribution units (PDUs), which should be robust, appropriately listed enclosures equipped with overcurrent protection and GFCI receptacles where required.
• Grounding: A solid grounding system is non-negotiable. This includes driving an appropriate grounding electrode and ensuring all metal enclosures and raceways are bonded together to create an effective ground-fault current path as required by NEC Article 250 and enforced by the authority having jurisdiction.
• Wiring and Enclosures: All wiring must be protected from physical damage. Cords should be rated for hard or extra-hard usage (Table 400.4 in the NEC identifies acceptable cord types for temporary use). Any connections or splices should be made inside a suitable listed enclosure, and any outdoor electrical box must have a weather-resistant “in-use” cover where exposed to moisture.
• Extension Cords: Only use construction-grade extension cords that are suitably rated (hard or extra-hard usage) and three-conductor where grounding is required. They must be inspected daily for cuts, abrasions, or damaged plugs. Using underrated cords is a common cause of overheating and voltage drop.

Hazard Mitigation: From Load Calculation to Lockout/Tagout

A proactive jobsite electrical hazard assessment identifies risks before they become incidents. A qualified electrician’s safety duties extend beyond installation to active monitoring and hazard control.

Step-by-Step Electrical Load Calculation

A frequent problem on job sites is a breaker keeps tripping, which is often a symptom of an overloaded circuit. Proper electrical load calculation is essential to prevent this.

1. Identify All Loads: Create a comprehensive list of all tools, lighting, and equipment that will connect to the temporary power system. Note their voltage and amperage or wattage ratings.
2. Calculate Individual Circuit Loads: Group loads onto branch circuits, ensuring the total load on each circuit does not exceed 80% of the rating of its overcurrent protection device for continuous loads (i.e., size continuous-load circuits so the breaker rating is at least 125% of the continuous load), consistent with NEC guidance for continuous service loads.
3. Determine Feeder and Service Needs: Sum the loads of all branch circuits, applying any applicable demand factors from the NEC and industry practice, to size the main feeders and the overall service or generator. Use NEC guidance for temporary installations and general feeder/service sizing rules in Article 220 and related articles.
4. Account for Voltage Drop: For long cord runs, use a voltage drop calculator to ensure the voltage at the point of use remains within recommended limits. Industry practice and NEC informational guidance commonly recommend aiming for no more than about 3% voltage drop on branch circuits and a combined feeder-plus-branch drop of about 5%.

Ensuring every job site is safe from start to finish with training and adherence to code requirements is the best way to reinforce these critical skills.

Lockout/Tagout (LOTO) Procedures

For any maintenance, repair, or modification to the temporary power system, strict Lockout/Tagout procedures are mandatory. This aligns with NFPA 70E guidance on establishing an Electrically Safe Work Condition (ESWC) and with OSHA’s Lockout/Tagout standard (29 CFR 1910.147), which requires employers to implement a formal LOTO program and ensure employees are trained to follow it. The basic steps include de-energizing the circuit, applying a lock and tag to the disconnecting means, and verifying the absence of voltage with a properly rated test instrument before any work begins. When appropriate, temporary protective grounding may also be applied for certain tasks, and arc-flash boundaries identified by an arc-flash risk assessment help define required PPE and safe working distances.

Primary Sources

• NFPA 70, National Electrical Code (NEC)
• OSHA Standard 1926.405 – Wiring methods, components, and equipment for general use
• NFPA 70E, Standard for Electrical Safety in the Workplace

Related Resources

• 2023 NEC Rules for Outdoor Generator Inlets

Frequently Asked Questions

What is the difference between GFCI protection and an Assured Equipment Grounding Conductor Program?

A GFCI actively monitors for current imbalances and de-energizes a circuit during a ground fault to prevent electrocution. An AEGCP is a documented inspection and testing program (required to be continuously enforced on site by designated person(s)) that verifies equipment grounding conductor continuity; it does not automatically de-energize a circuit during a fault. NEC Article 590 recognizes this program as an alternative to GFCI protection when implemented and documented according to the code.

How does NEC Article 590 govern temporary power safety?

NEC Article 590 provides specific rules for temporary electrical installations used during construction, remodeling, or demolition. It specifies permitted wiring methods, time limits for use, and requirements for personnel protection (including ground-fault protection provisions), while also stating that all other applicable NEC rules must still be followed. It requires that temporary wiring be removed immediately after its purpose is served.

Why is a voltage drop calculator important for job site wiring?

A voltage drop calculator is crucial for ensuring that equipment receives adequate voltage, especially over long extension cord runs common on job sites. Excessive voltage drop can cause tools and motors to overheat, perform poorly, and suffer a shortened lifespan. It also poses a fire risk by causing wires to heat up. Proper calculation helps in selecting the correct gauge of wire for the distance and load; industry guidance commonly recommends keeping branch-circuit drop near 3% and total drop (feeder plus branch) within 5%.

What are the key Lockout/Tagout procedures for temporary power systems?

Key Lockout/Tagout procedures, in line with NFPA 70E guidance and OSHA’s LOTO standard (29 CFR 1910.147), involve isolating equipment from all energy sources, applying a personal lock and tag to the disconnecting means, verifying the absence of voltage with a properly rated test instrument, and, if necessary, applying temporary protective grounds. These steps ensure a system is in an Electrically Safe Work Condition before any maintenance or service is performed.
