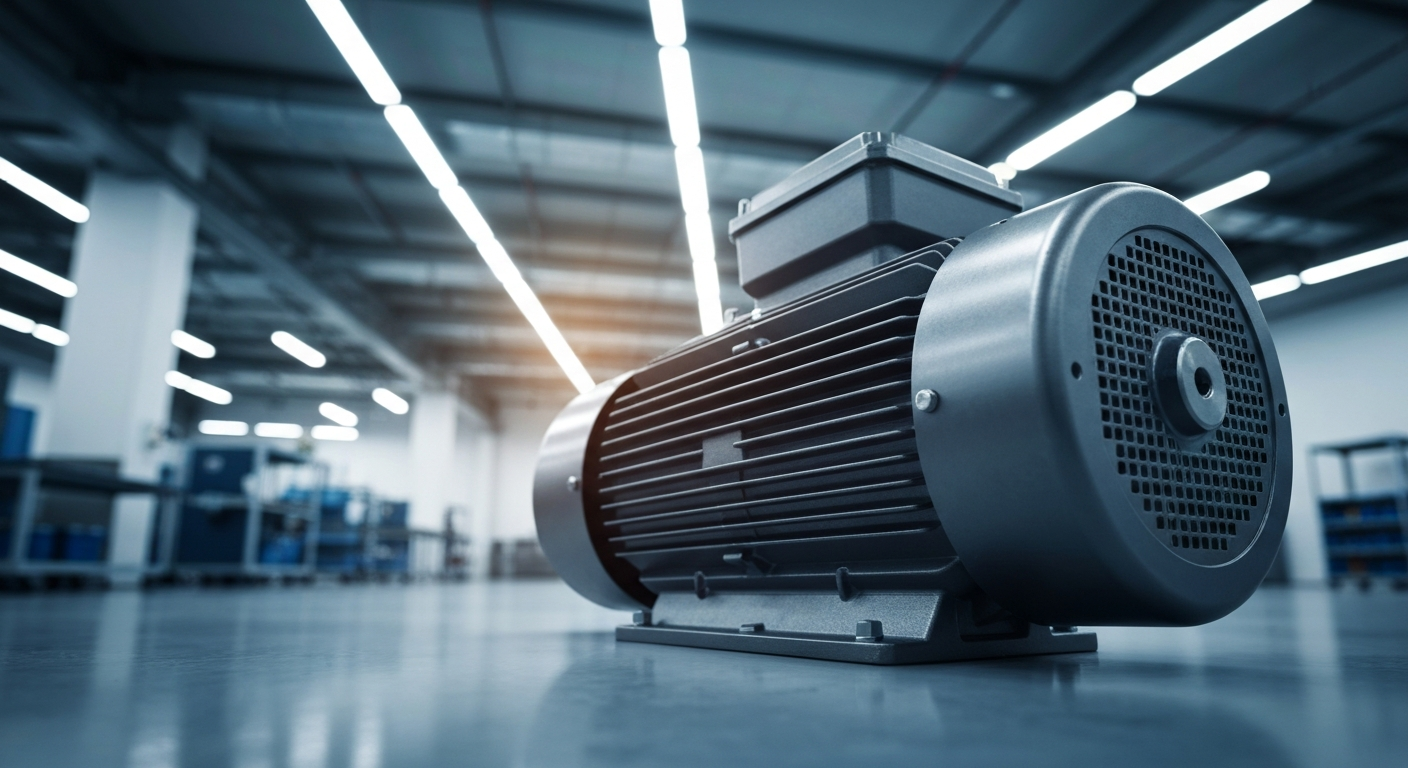

Single-Phase vs. Three-Phase Motors: Operating Principles
Single-Phase vs. Three-Phase Motors: A Guide for the Modern Electrician
In the world of electrical work, understanding the core differences in single-phase vs three-phase motors is fundamental. For the professional journeyman electrician or master electrician, this knowledge goes beyond simple definitions; it dictates system design, troubleshooting, and application efficiency. Three-phase motors, the workhorses of industry, generate a naturally rotating magnetic field, providing powerful, self-starting operation with high efficiency. Single-phase motors, common in residential and light commercial settings, require additional components like start windings or capacitors to artificially create this field. This fundamental difference in induction motor principles impacts everything from starting torque vs running torque to overall complexity. Modern solutions like a variable frequency drive (VFD) can bridge the gap, allowing three-phase motors to run on single-phase supplies, but the core distinction in AC motor theory remains a critical piece of knowledge for any electrical professional.
Understanding the Fundamentals: Electrical Phase and AC Motor Theory
Before comparing motor types, it’s essential to grasp the concept of an electrical phase. In AC (alternating current) systems, voltage and current sinusoidal waves rise and fall. In a single-phase system, there is one such wave. In a three-phase system, there are three separate waves, each offset by 120 degrees from the others. This staggered power delivery is the key to the superior performance of three-phase motors.
While a DC motor (direct current) operates on a constant supply of voltage, AC motors leverage the alternating nature of the power source. AC motor theory is centered on the principle of creating a rotating magnetic field in the stator (the stationary part of the motor), which induces a current and a magnetic field in the rotor (the rotating part), causing it to turn. How this rotating field is generated is the primary distinction between single-phase and three-phase designs.
The Workhorse of Industry: Three-Phase Induction Motors
Three-phase motors are the default choice for industrial and heavy commercial applications for a reason. When three-phase power is supplied to the stator windings, it naturally creates a perfectly balanced rotating magnetic field. This elegant principle provides several distinct advantages:
- Self-Starting: The rotating field immediately exerts force on the rotor, meaning the motor starts without the need for auxiliary circuits.
- High Starting Torque: They can start effectively under heavy loads, a critical feature for industrial machinery.
- Efficiency and Power: For the same size, a three-phase motor delivers more power more efficiently than its single-phase counterpart. They boast typical efficiencies of 85-95%.
- Durability: With a simpler design that lacks centrifugal switches, start capacitors, or brushes, they are generally more reliable and require less maintenance.
These motors are commonly found in industrial and heavy commercial applications and are often used for motors larger than about 5 horsepower. You’ll see standard motor voltage ratings such as 208V, 240V, and 480V. The motor winding configurations, typically Wye (Star) or Delta, allow for different voltage and current characteristics to suit various motor starter circuits. For industrial applications in the U.S., electric motor systems account for a substantial share of electricity use; analyses commonly estimate motor systems consume on the order of 40–50% of industrial electricity (commonly cited ≈45%), highlighting the dominance of motor-driven equipment in industry.
The Backbone of Residential & Light Commercial: Single-Phase Motors
Single-phase power is what’s delivered to most homes and small businesses. A single-phase motor cannot produce a rotating magnetic field on its own; instead, it produces a pulsating field that moves back and forth. This field can keep a rotor spinning, but it can’t get it started from a standstill. To overcome this, single-phase motors use various designs to create a temporary, simulated second phase to initiate rotation:
- Split-Phase Motors: Use a separate “start winding” with different electrical properties to create a slight phase shift. A centrifugal switch disconnects this winding once the motor reaches about 75% of its rated speed.
- Capacitor-Start Motors: Add a capacitor in series with the start winding to create a more significant phase shift, resulting in much higher starting torque vs running torque compared to a split-phase motor.
While effective, these starting mechanisms add complexity and potential points of failure. Single-phase motors are less efficient (75-85% typical efficiency) and are generally used for applications under about 5 horsepower, though larger single-phase models may exist, they are less common and typically less efficient than their three-phase counterparts.
Key Differences Every Journeyman and Master Electrician Must Know
Choosing the right motor requires a clear understanding of these trade-offs. The decision impacts not only performance but also installation and long-term operating costs.
- Power Delivery: Three-phase power is constant and smooth. Single-phase power delivery dips to zero twice in every cycle, resulting in more vibration and less efficient operation.
- Efficiency: Based on typical models, three-phase motors can be approximately 10-20% more efficient than comparable single-phase motors, though this range varies with motor size and design, leading to significant energy savings over the motor’s lifespan.
- Starting Torque: Three-phase motors have high starting torque inherently. Single-phase motors require special designs to achieve acceptable starting torque, and it’s generally lower.
- Cost & Complexity: While the three-phase motor itself can be cheaper and simpler, the cost of bringing three-phase service to a location is very high. Single-phase motors are more complex but operate on readily available power.
- Size: For a given horsepower rating, a three-phase motor is physically smaller and lighter than a single-phase motor.
For a detailed breakdown of wiring and calculations, our three-phase electrical calculations guide provides in-depth examples.
Reading the Nameplate: A Step-by-Step Guide to NEC Motor Standards
A motor’s nameplate is a data sheet condensed into a few square inches. Every master electrician must be fluent in interpreting this information according to National Electrical Code (NEC) motor standards, primarily found in NEC Article 430. Here’s a quick guide:
- Identify Voltage and Phase: Check the motor voltage ratings (e.g., 230/460) and phase (1 or 3) to ensure compatibility with the supply circuit.
- Find Amperage Ratings: Locate the Full Load Amps (FLA), which is crucial for sizing conductors and overload protection. Also, note the Code Letter, which corresponds to a NEMA/NFPA designation for the locked-rotor kVA per horsepower (used with NEC tables to estimate locked-rotor current) and is used for sizing short-circuit and ground-fault protection.
- Check the Service Factor (SF): A service factor greater than 1.0 (e.g., 1.15) indicates the motor can handle occasional overloads. A motor with a 1.15 SF can be operated at 15% above its rated horsepower without damage.
- Note the Motor Frame Size: The motor frame size (e.g., 56, 145T) is a NEMA standard that dictates mounting dimensions, ensuring physical interchangeability between manufacturers.
- Review Insulation Class and RPM: The insulation class (e.g., B, F, H) indicates the motor’s ability to withstand heat. RPM specifies the rotor’s speed at full load.
The NEC is the definitive nec code book for all motor installations, including rules for disconnects like a motor rated switch and specific guidelines on retrofits. The code also provides guidance on equipment conditions, as detailed in our lesson on how reconditioned motors are addressed in the 2023 NEC.
Advanced Motor Control and Diagnostics
The lines between single-phase and three-phase applications are increasingly blurred by modern technology. Variable Frequency Drives (VFDs) are a game-changer in motor starter circuits. These electronic devices can convert single-phase AC to DC, and then invert it back to a simulated three-phase AC output. This allows an electrician to run a robust three-phase motor on a single-phase supply. Learn more by reading our popular article, What is a VFD (Variable Frequency Drive)?
For large facilities with numerous motors, power factor correction becomes a significant concern to improve electrical efficiency and avoid utility penalties. In terms of diagnostics, tools like a megohmmeter are indispensable for testing the integrity of motor winding insulation to preemptively identify degradation before a catastrophic failure. When planning installations, especially over long distances, using a voltage drop calculator is essential to ensure the motor receives adequate voltage to operate correctly.
Mastering these advanced concepts separates a good electrician from a great one. If you’re looking to deepen your expertise in motor controls and theory, ExpertCE offers a range of online electrical courses designed for licensed professionals.
Become a motor expert. Check out our courses on motor controls and theory.
Frequently Asked Questions (FAQ)
- What is the main difference in single-phase vs three-phase motors operating principles?
- The primary difference lies in the creation of the magnetic field. A three-phase motor uses its three offset power phases to naturally generate a rotating magnetic field in the stator, making it self-starting and efficient. A single-phase motor receives a pulsating field and requires an auxiliary start winding or capacitor to create a temporary, artificial rotating field to begin turning.
- Can I use a VFD to run a three-phase motor on a single-phase supply?
- Yes. A Variable Frequency Drive (VFD) is one of the most common and effective methods for operating a three-phase motor on a single-phase power source. The VFD converts the single-phase AC to DC and then inverts it into a clean, synthesized three-phase output, often providing the added benefit of variable speed control.
- Why is starting torque vs running torque important when selecting a motor?
- Starting torque is the force the motor can generate from a standstill, while running torque is the force it provides at its normal operating speed. Applications with high initial loads, like a loaded conveyor belt or an air compressor, require high starting torque. Three-phase motors inherently have excellent starting torque, whereas some single-phase designs may struggle with hard-to-start loads.
- Where in the NEC code book can I find national electrical code (NEC) motor standards?
- The primary resource for motor standards in the NEC code book is Article 430, “Motors, Motor Circuits, and Controllers.” This extensive article covers conductor sizing, overload and short-circuit protection (based on ratings like FLA), control circuits, disconnects, and specific requirements for various motor types.
