A Master and Journeyman Electrician’s Guide to NEC Rules for Energy Storage (Article 706)

The rapid growth of solar power and battery technology has made Energy Storage Systems (ESS) a common sight in residential and commercial projects. For any master electrician or journeyman electrician, understanding the specific nec rules energy storage systems must follow is no longer optional—it’s critical for safety, compliance, and performance. The National Electrical Code (NEC) primarily addresses these systems in Article 706, which provides a framework for everything from disconnecting means to circuit calculations. Key rules focus on providing a clear and accessible ESS disconnecting means, defining requirements for an emergency shutdown function, and ensuring proper overcurrent protection (OCPD). These regulations, which often work in tandem with NEC Article 705 for interconnection and Article 480 for storage batteries, are essential knowledge for any professional performing electrician training or installing modern power systems. As the industry evolves, staying current with the nec code book is paramount for safe, reliable installations.

Understanding NEC Article 706: The Foundation for Energy Storage Systems

Introduced in the 2017 NEC, Article 706 was created to centralize the rules for the growing number of ESS installations, from a solar powered generator for home to large commercial battery banks. The scope of Article 706 applies to energy storage systems (ESS) having a capacity greater than 3.6 MJ (1 kWh). Article 706 covers systems that may be stand-alone or operate interactively with other electric power production sources. For any professional, learning how to navigate the 2023 NEC code book is the first step to mastering these requirements. Article 706 clarifies that it applies to systems designed to store and provide energy during normal operating conditions, distinguishing them from traditional standby batteries which are covered more specifically under NEC Article 480 storage batteries.

A central figure in these installations is the qualified person (NEC 706.3), defined as an individual with the skills and knowledge related to the construction and operation of the electrical equipment and installations, and who has received safety training to recognize and avoid the associated hazards. Many requirements within Article 706, such as adjusting charge control settings, are restricted to access by a qualified person only, underscoring the need for specialized electrician training.

Critical Safety Mandates: ESS Disconnecting Means and Shutdown

One of the most critical safety components addressed in Article 706 is the disconnecting means. The code mandates a method to disconnect the ESS from all other wiring systems, including the grid, other power sources, and the building’s own circuits. This is vital for the safety of first responders and maintenance personnel. The 2023 NEC has further clarified these rules and the disconnecting-means provisions include distinct requirements for the system disconnect, accessibility, emergency shutdown for one- and two-family dwellings, and measures to secure controls used remotely.

The Role of the Emergency Shutdown Function

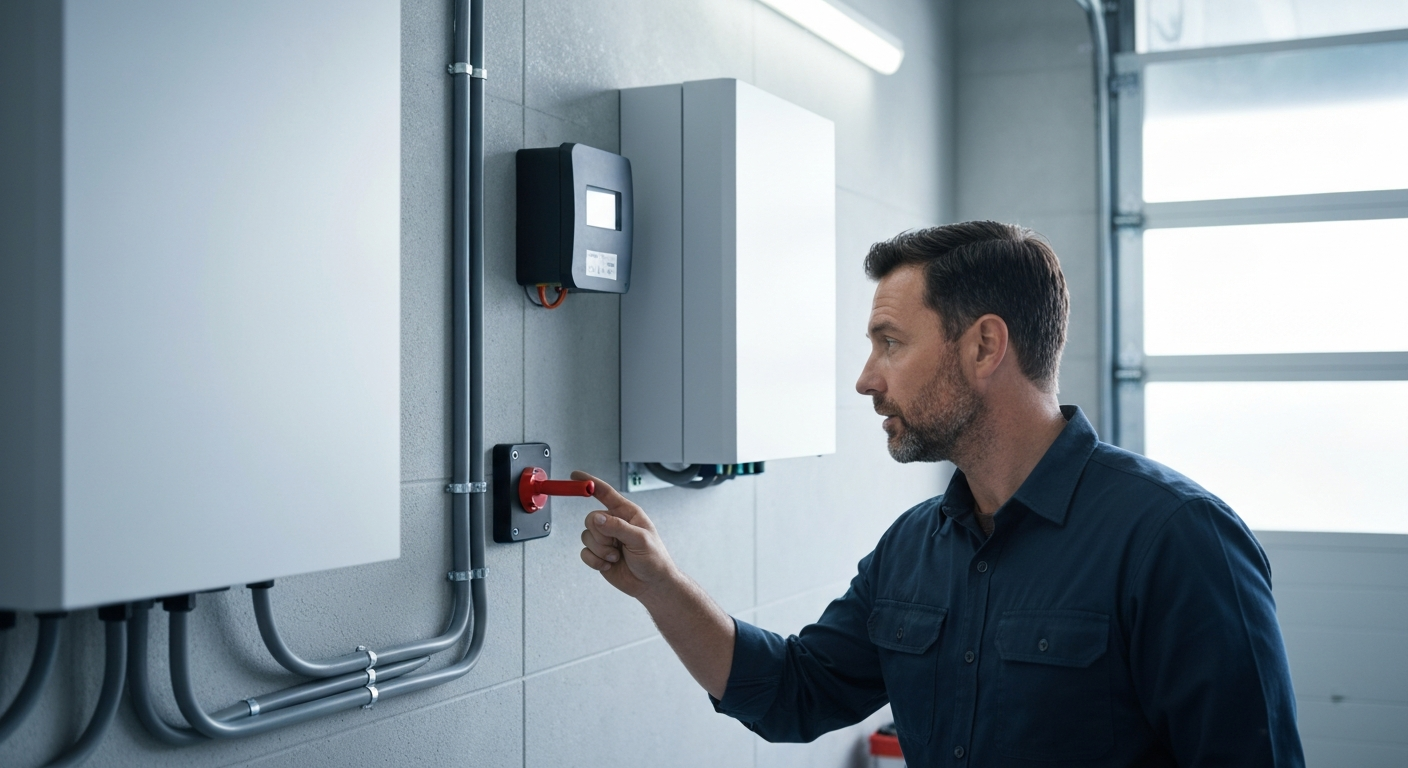

For one- and two-family dwellings, requirements for a mandatory emergency shutdown function were clarified and expanded in recent NEC editions. This function ceases the export of power from the ESS; the initiation device (like a button or switch) must be readily accessible outside the building and clearly marked. This allows emergency personnel to quickly de-energize the system without needing to access the equipment directly, improving safety and simplifying emergency response.

Battery Circuit Maintenance Disconnect Explained

When batteries are installed separately from the ESS electronics and require field servicing, additional rules apply. Article 706 requires a disconnecting means for ungrounded conductors derived from stationary standby batteries where field servicing is expected. In systems where series battery circuits exceed 240 volts dc nominal between conductors or to ground, the code requires provisions to disconnect series-connected strings into segments not exceeding 240 volts dc nominal for safe maintenance. These provisions are critical for any master electrician designing a large residential or commercial system.

Interconnection, Circuit Sizing, and Protection

Properly connecting an ESS to a building’s electrical system while ensuring all conductors and components are protected is a complex task governed by multiple NEC articles. The interplay between Article 706 and Article 705 is particularly important for grid-tied systems.

NEC 705 Interconnection and Load-Side Connection Rules

While Article 706 governs the ESS itself, NEC 705 interconnection rules dictate how it connects to other power sources. Connections can be made on the supply side (for example, at the supply side of the service) or on the load side. Many residential systems use load-side connection methods; installers must follow the requirements in Article 705 to ensure panelboards, feeders, and busbars are not overloaded by the addition of a new power source. A listed Power Control System (PCS) or Energy Management System can be used to manage power flow and avoid overloads where permitted.

Conductor Ampacity Calculations and Overcurrent Protection (OCPD)

Proper circuit sizing and current calculations are fundamental to a safe ESS installation. NEC Article 706 describes how to determine maximum circuit currents for ESS components; these values are then used to size conductors and overcurrent protection.

This involves detailed conductor ampacity calculations. Note that the NEC requires overcurrent protective devices to be sized in many ESS installations at 125 percent of the calculated maximum currents; conductor ampacity must then be selected so it is not exceeded by the chosen overcurrent protective device and must comply with Article 310 ampacity rules and any required temperature/adjacency corrections.

Equally important is providing correct overcurrent protection (OCPD). Key steps include:

1. Determine Maximum Current: Identify the maximum current the ESS can supply to the conductors being protected.
2. Select OCPD Rating: Choose a circuit breaker or fuse rated to protect the conductors according to Article 240. Where DC portions of the system are involved, overcurrent protective devices used in DC circuits must be listed for the DC application.
3. Verify Interrupting Rating: Ensure the OCPD has an interrupting rating sufficient for the available fault current from the ESS.
4. Confirm Location: The OCPD must be located and marked as required by the code, typically near the source or as otherwise specified.

Beyond Article 706: Related Codes and Standards

A compliant ESS installation requires looking beyond a single article in the nec code book. Several other standards play a crucial role in ensuring a safe system, from the manufacturing process to final commissioning.

The Importance of UL 9540 Listing and NFPA 855 Coordination

NEC requires ESS equipment to be listed. While the NEC does not mandate a single named listing for every installation, UL 9540, the Standard for Energy Storage Systems and Equipment, is a commonly used product-safety standard for complete ESS products and is frequently relied on by manufacturers and Authorities Having Jurisdiction (AHJs). Installation must also comply with NFPA 855, Standard for the Installation of Stationary Energy Storage Systems, which addresses siting, spacing, ventilation, and fire-protection measures. Under some conditions a UL 9540A test report can be used to justify reduced spacing or alternative mitigations, but these options depend on the AHJ and the installation specifics—so coordinate with AHJs and the listing documentation. Navigating the requirements of UL and NFPA standards is a key part of modern battery safety protocols.

Commissioning and Maintenance

NEC requires ESSs to be commissioned upon installation; this commissioning requirement does not apply to one- and two-family dwellings. Commissioning verifies the system is installed correctly and operates as designed, serving as the final quality-control check that safety and performance features are functional. As technology advances, understanding these commissioning and maintenance requirements becomes crucial for installers.

Install battery systems safely and to code. Learn more about NEC Article 706.

Key Takeaways for Qualified Installers

• Disconnects are Mandatory and Specific: You must install disconnecting means that meet the Article 706 requirements for system isolation, accessibility, emergency shutdown for dwellings, and battery maintenance. The code also prescribes marking and information requirements for disconnects.
• Interconnection Requires Calculation: Always follow NEC 705 for interconnection and load-side connection rules, ensuring the panel busbar and feeders can handle the additional power source or using a listed PCS/EMS where appropriate.
• Look for a Listed ESS: NEC requires ESS to be listed; UL 9540 is a commonly used listing for complete ESS products and is frequently accepted by AHJs, though AHJs may accept equivalent evaluations or listings.
• Coordinate with NFPA 855: Siting, spacing, and ventilation are governed by NFPA 855. Under certain conditions a UL 9540A test report or equivalent evaluation may be used to demonstrate reduced spacing or alternative mitigations—coordinate with the AHJ.
• Stay Current with the Code: The rules for ESS are evolving rapidly. Both master electrician and journeyman electrician professionals must stay updated with the latest NEC edition through online electrical courses and other training.
