How to Select the Right Solar Racking System for Any Roof

Selecting the right solar racking system is a critical decision that directly impacts the safety, longevity, and performance of any photovoltaic (PV) installation. The ideal system provides a secure foundation for solar panels while preserving the roof’s structural integrity and complying with all relevant codes. Making the correct choice requires a multi-faceted analysis, considering everything from the building’s roof load capacity and local environmental conditions to the specific type of roofing material. For a professional journeyman electrician or installer, a deep understanding of different racking options—such as railed, rail-less systems, and ballasted racking—is essential. Furthermore, adherence to the NEC code book for proper grounding and bonding is non-negotiable. A successful installation balances mechanical strength, code compliance, and long-term durability, ensuring the system withstands wind, snow, and time. With the solar industry rapidly expanding, mastering these selection criteria is key to delivering safe, efficient, and reliable energy solutions. For electricians looking to enter this growing field, there are abundant career opportunities in Colorado’s solar market and beyond.

Understanding the Core Function of a Solar Racking System

A solar racking system, also known as a mounting system, is the foundational framework that secures solar panels to a roof or the ground. Its primary role is to ensure the structural integrity of the entire array, protecting the significant investment in solar panels and the building itself. A properly engineered system anchors the panels against environmental forces like wind and snow while distributing their weight safely across the roof structure. Many high-quality racking systems and components are listed to UL 2703, a standard that evaluates mounting-system components and system bonding when the manufacturer has the product listed. When available, a UL 2703 listing is a useful indicator of integrated mechanical and bonding evaluation, but not all compliant systems are listed to that standard, so verify the product listing or manufacturer documentation. A listing helps confirm the manufacturer’s bonding approach and the mechanical performance the product was evaluated for, but installers still must follow NEC grounding and bonding requirements and the manufacturer’s instructions.

Key Factors in Racking System Selection

Choosing the appropriate racking system is a site-specific process. An electrician must evaluate several critical factors to ensure a safe and effective installation that will last for decades.

Roof Characteristics and Structural Integrity

The first step is a thorough assessment of the roof itself. This includes its type, age, condition, and, most importantly, its roof load capacity. Modern solar panels typically add roughly 2–4 pounds per square foot (depending on panel size and weight), which many roofs can accommodate, but a licensed structural engineer should always verify suitability for each site.

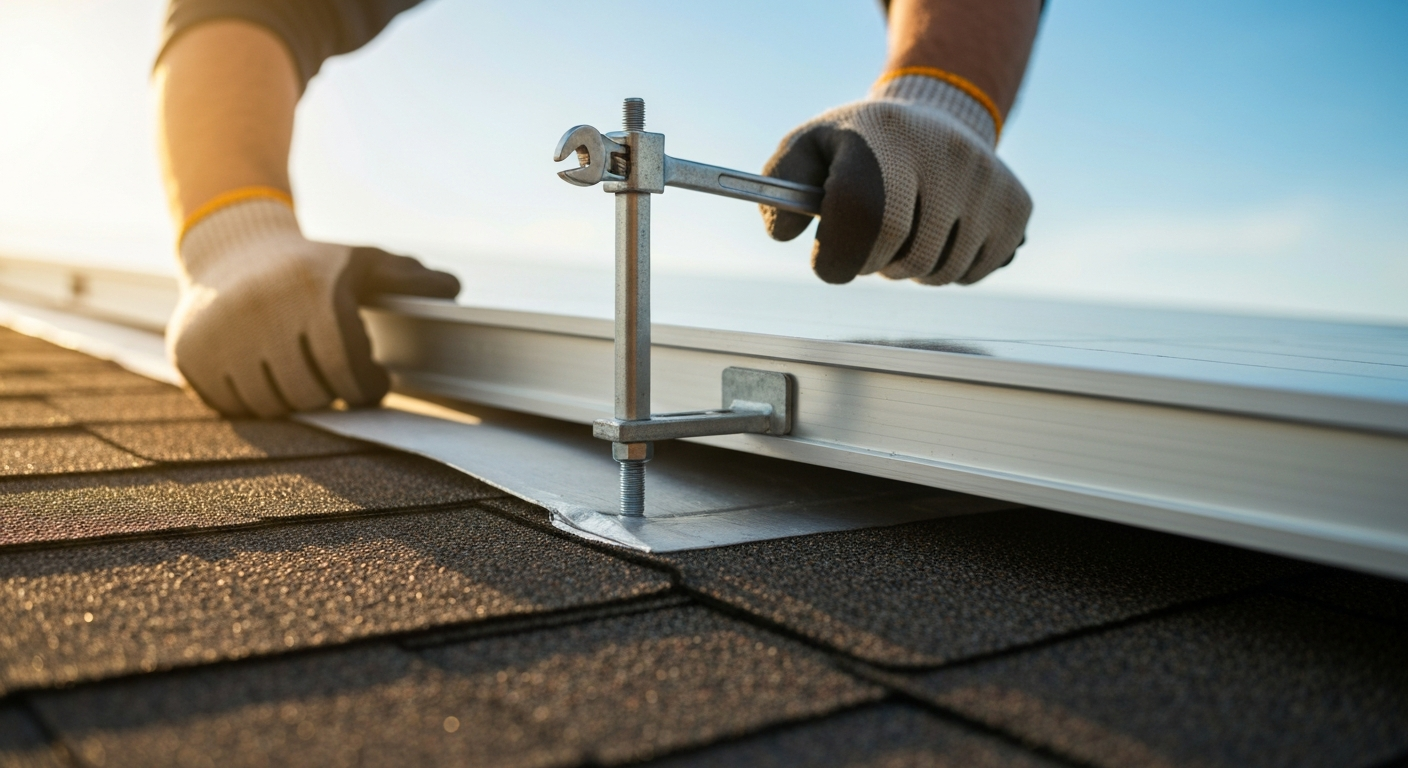

• Pitched Asphalt Shingle Roofs: These are the most common and typically involve a roof penetration to lag bolt mounts directly into the rafters. A critical component here is flashing combined with an L-foot, which creates a waterproof seal to help prevent leaks when installed per the manufacturer’s instructions.
• Metal Roofs: For standing seam metal roofs, specialized standing seam clamps are often used. These clamps attach to the raised seams without penetrating the seam in many designs, preserving the roof’s integrity and often avoiding roof-membrane penetrations—however, always confirm compatibility with the roof manufacturer and the racking listing or instructions.
• Flat Roofs: These roofs often use ballasted racking systems. These non-penetrating systems use concrete blocks to hold the array in place, relying on weight and friction to resist wind uplift. Ballasted solutions avoid penetrations, but they increase the roof dead load and may affect the roof warranty and structural requirements, so consult the roofing manufacturer and a structural engineer before choosing a ballast design.

Environmental Loads: Wind and Snow

Environmental forces are a primary consideration for ensuring the long-term stability of a solar array.

• Wind Load Calculations: High winds create significant uplift and shear forces on solar arrays. Proper wind load calculations, often guided by standards such as ASCE 7 or the local building code, are essential to determine the number and spacing of attachment points. The calculations account for building height, roof zones (corners and edges experience higher forces), and the panel’s tilt angle.
• Snow Load: In colder climates, the accumulated weight of snow can be substantial. The racking system must be strong enough to support the combined weight of the panels and the maximum expected snow load for the region. Installations in high-altitude areas, such as those found when wiring homes in the mountains of Colorado, require particularly robust designs to handle heavy and prolonged snow cover.

Electrical and Code Compliance per the NEC Code Book

For any electrician training for solar work, understanding the National Electrical Code (NEC) is paramount. Article 690 of the NEC code book provides detailed requirements for PV systems.

• Grounding and Bonding: This is arguably the most critical safety aspect of a solar installation. All metallic components, including panel frames and racking, must be properly bonded and grounded to protect against faults and lightning. A grounding lug is commonly used to connect the system’s equipment grounding conductor to the racking, which in turn is bonded to the panels. Many UL 2703-listed systems feature integrated bonding methods that create the bond when modules are clamped; when present, these integrated approaches reduce the number of separate bonding jumpers required—but installers must verify the product listing and follow the manufacturer’s instructions. The PV array also must be connected to the building grounding electrode system where required by the NEC.
• Wire Management: Exposed DC conductors must be managed to prevent damage from sharp edges, UV degradation, and critters. NEC provisions require support and protection of exposed single-conductor cables; for example, smaller exposed conductors are commonly secured at intervals such as 24 inches (600 mm) for 8 AWG and smaller using listed supports or UV-resistant clips where required. Proper wire management is not just for aesthetics; it is a crucial safety measure to prevent insulation breakdown and potential arc faults.
• Circuit Design: The layout of the array is also influenced by whether the panels are wired in a series vs parallel circuit. Series connections increase voltage, while parallel connections increase current. The final design must match the input specifications of the inverter and meet NEC requirements for maximum circuit voltage, conductor ampacity, and overcurrent protection.

Common Types of Solar Racking Systems

The market offers several types of racking systems, each with unique advantages depending on the application.

Railed and Shared-Rail Systems

Traditional railed systems are the industry workhorse. They typically consist of two parallel rails per row of panels, providing robust support and easy adjustability. More recently, shared-rail systems have gained popularity. These systems use a single rail between two rows of panels, reducing the total amount of material, cost, and roof penetrations required.

Rail-Less Systems

For homeowners who prioritize aesthetics, rail-less systems offer a sleek, low-profile alternative. In these systems, hardware attaches directly to mounts anchored on the roof, and the panels connect to this hardware. The result is a cleaner look, but they may offer less adjustability for leveling panels on an uneven roof.

Ballasted Racking

Ballasted racking is commonly used on large, flat commercial roofs because it avoids roof penetrations. These systems use weighted trays to secure the array. The design of these systems is a careful balance—enough weight to resist wind uplift, but not so much as to exceed the roof’s load capacity. On commercial projects, planning for a solar array may coincide with plans for a backup power source, such as a standby generator and its associated transfer switch for generator, making a non-penetrating system an attractive option when roof penetrations would complicate membrane warranties or roof repairs.

Ensure secure and lasting installations. Learn more about solar mounting hardware.

Step-by-Step: A Simplified Roof Load Assessment

While a structural engineer must perform the official analysis, electricians can conduct a preliminary assessment to identify potential red flags.

1. Calculate Panel and Racking Weight: Determine the total weight of the panels and the chosen solar racking system. A modern panel weighs about 40–50 lbs, and racking commonly adds roughly 5–15 lbs per panel depending on system design. This gives you a total dead load.
2. Determine the Array Area: Calculate the total square footage the array will occupy on the roof.
3. Calculate Added Pounds Per Square Foot (PSF): Divide the total dead load by the array area. This typically results in an added load commonly in the 2–4 PSF range for modern residential arrays.
4. Assess the Roof Structure: From a safe vantage point (like an attic), inspect the rafters or trusses. Note their size (e.g., 2×6, 2×8) and spacing (e.g., 16″ or 24″ on center). Note any signs of damage, sagging, or water intrusion.
5. Consult Load Tables and a Professional: Compare your findings with standard span tables for roof structures. If the roof framing appears undersized, is in poor condition, or if the added load is over about 4 PSF, it is absolutely critical to stop and consult a structural engineer before proceeding.

Frequently Asked Questions (FAQ)

What is the most important factor when choosing a solar racking system?

The most critical factor is ensuring the system can maintain the structural integrity of the roof while safely handling all anticipated loads, including the weight of the panels plus environmental forces like wind and snow. This requires a professional assessment of the roof load capacity and adherence to local building codes and manufacturer instructions.

How does the NEC code book apply to a solar racking system?

The NEC code book, particularly Article 690, governs the electrical safety of the PV installation. For racking, NEC provisions most directly affect bonding and grounding of metallic components (see NEC grounding and bonding requirements and Article 250), and conductor support, routing, and wiring method requirements (see Article 690 wiring-method provisions). Proper wire management as specified in the code is essential to protect DC conductors secured to the racking.

Are rail-less systems better than traditional railed solar racking?

Neither is inherently “better”; they serve different priorities. Traditional railed and shared-rail systems offer maximum strength and adjustability, making them ideal for uneven roofs or higher-load situations. Rail-less systems provide a superior aesthetic with a lower profile and can be faster to install, but may offer less flexibility for leveling and require strict adherence to manufacturer guidance.

What is the difference between a standby generator and a solar panel generator system?

A standby generator typically runs on natural gas or propane and automatically provides backup power during a grid outage via a transfer switch for generator. The term “solar panel generator” is commonly used to describe a PV array paired with battery storage (a PV + battery system) that captures and stores solar energy to provide power during an outage or at night; it operates silently and without fossil fuels when supplying load from the batteries.
