How to Install and Secure Rooftop Solar Racking Systems

To properly install solar racking, the electrical work should be carried out by a qualified electrician or certified PV installer and the structural work performed by qualified roof and racking installers (with structural engineer involvement when required). Local licensing and permitting requirements determine who must perform which portions of the work. The procedure begins with a thorough roof assessment and layout, followed by installing flashing and mounts at rafter locations. Rails are then attached and leveled before mounting any module-level power electronics (MLPE). The core of a safe installation lies in creating a durable, bonded structure. Using UL 2703 listed racking components can provide integrated grounding and bonding features that help establish the Equipment Grounding Conductor (EGC) path; however, the installer must still connect the array grounding to the building’s grounding electrode system or otherwise comply with NEC Article 690 and Article 250 requirements for grounding and bonding. Careful PV wire management using appropriate clips and supports is crucial to prevent insulation damage. The final steps involve securing the PV modules, making all electrical connections, and performing an electrical continuity test to verify low-resistance bonds throughout the grounded and bonded rooftop solar racking system, the backbone of any reliable solar array.

The Foundation of Every Rooftop PV System: Understanding Solar Racking

Rooftop solar racking is the essential skeleton that supports a solar array. Far from being simple hardware, it is an engineered system designed to secure photovoltaic (PV) panels to a roof for their entire warranted life. Its primary functions are to withstand environmental forces like wind, snow, and seismic activity while providing a safe, code-compliant framework for all electrical components. For a journeyman electrician, understanding the nuances of different racking systems is as critical as understanding the electrical principles of the solar panel generator itself. Modern systems often use lightweight aluminum alloys and rail-less or low-profile designs to improve aesthetics and reduce installation time, but the choice must match structural and electrical requirements.

Pre-Installation Planning: Structural and Electrical Due Diligence

A successful installation begins long before the first hole is drilled. The first step is a comprehensive site assessment. This involves evaluating roof condition and orientation and verifying that the underlying structure can handle the additional dead and live loads imposed by the system; when in doubt, consult a structural engineer and the racking manufacturer’s guidance.

From an electrical standpoint, planning involves determining the array layout, which impacts stringing decisions and whether to use a series vs parallel circuit configuration to optimize voltage and current for the selected inverter. An essential part of this phase is using a voltage drop calculator to ensure that the conductors running from the array to the point of connection are adequately sized to minimize energy loss, a critical factor for system performance.

Adhering to the NEC Code Book: Grounding and Safety Mandates

Compliance with the National Electrical Code (NEC), particularly Article 690, is non-negotiable for rooftop PV systems. The NEC code book provides the minimum safety standards for solar PV installations. Key mandates include rapid shutdown for rooftop arrays on buildings, required by the NEC for firefighter safety, and listed arc-fault protection where applicable. Specifically, PV DC circuits that operate at 80 volts DC or greater require a listed PV arc-fault circuit interrupter (AFDI) or equivalent per NEC 690.11 to address arcing faults on the DC side. Furthermore, grounding and bonding rules under Article 690 and Article 250 require that exposed non–current-carrying metal parts of the array be bonded together and connected to a grounding electrode system.

Step-by-Step Guide to Install Solar Racking Securely

While specific components vary by manufacturer, the fundamental process for installing a rail-based rooftop solar racking system follows a clear sequence. Always consult the manufacturer’s installation manual for specific torque values and component spacing.

1. Layout and Mark Attachment Points: Using a chalk line and tape measure, map out the array’s footprint on the roof. Locate the roof rafters and mark the precise locations for your mounting hardware. Do not attach mounts only to roof decking—mounts must be secured to structural members such as rafters or engineered blocking.
2. Install Flashing and Mounts: Drill pilot holes at your marked locations. Install the roof flashing, ensuring it is properly layered with shingles to prevent water intrusion. Secure the mounts (e.g., L-feet or standoffs) through the flashing into the structural members using the specified lag bolts. For a deeper look into sealing roof penetrations, our guide on firestopping electrical penetrations offers valuable techniques.

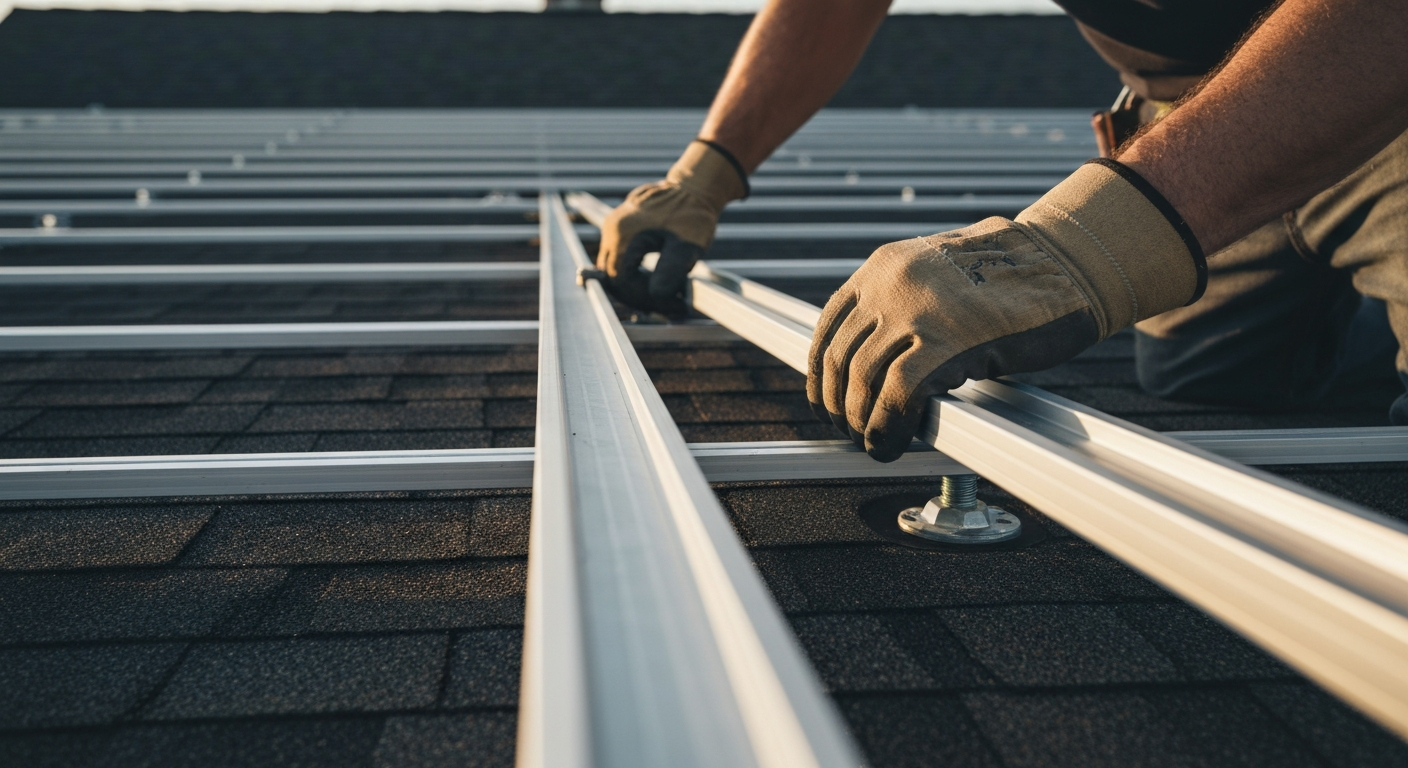

3. Secure the Rails: Attach the aluminum rails to the mounts. Use a string line or laser level to ensure the rails are coplanar, shimming at the mounts if necessary to account for roof irregularities. This is where rail-to-rail bonding is established, often achieved with manufacturer-supplied splice hardware in listed systems.
4. Install Module-Level Power Electronics (MLPE): If the system design includes microinverters or DC power optimizers, mount these devices to the rails per the manufacturer’s instructions, leaving wire leads accessible for later wiring and testing.
5. Bond the Racking System: This is a critical safety step. When using a UL 2703 listed mounting system installed per the manufacturer’s instructions, the listed hardware and clamps often provide the required bonding path. If the racking or components are not listed or the listing instructs otherwise, run a separate bonding jumper between rail sections and provide an appropriate connection to the Equipment Grounding Conductor (EGC) to meet NEC bonding rules.
6. Manage PV Wires: Secure all conductors using UV-rated wire management clips and supports. Proper PV wire management prevents wires from contacting abrasive roof surfaces or hanging loose, where insulation could be damaged over time. Wires run in conduit must follow NEC conduit fill, bending, and termination rules; use a conduit fill calculator and the manufacturer’s instructions to avoid overfilling and overheating.
7. Mount the Solar Panels: Place the PV modules onto the rails. Secure them using the specified mid-clamps and end-clamps, torquing them to the manufacturer’s specifications. When using listed integrated grounding components, these clamps often establish the module-to-rail bond as part of the listed system.
8. Perform Final Inspections: Before leaving the site, perform an electrical continuity test with a multimeter or appropriate test instrument to confirm that every rail and module frame has a solid, low-resistance connection to the grounding system, and verify all listed components are installed per their instructions.

Grounding and Bonding: The Core of UL 2703 and NEC 690 Compliance

Perhaps the most critical aspect of a solar installation is the grounding and bonding system. Its purpose is to create a safe, low-impedance path for fault current to travel, allowing overcurrent protection devices to operate correctly. A properly bonded system ensures that all exposed metal parts of the array are at the same electrical potential, eliminating shock hazards.

Integrated Grounding Racking vs. Traditional Methods

The introduction of UL 2703 listed racking systems has simplified array grounding for many installations. These listed systems can use module clamps and conductive splice hardware that bond modules to rails as they are installed, reducing or eliminating the need to install separate bonding jumpers to each module where the listing specifically allows it. However, the installer must still follow the listing instructions and ensure the EGC and connection to the grounding electrode system are properly provided. For racking that is not listed for integrated grounding, installers must use traditional bonding jumpers and grounding conductors so every metallic component is connected.

The Role of the EGC, GEC, and Grounding Rod

It is important to distinguish between the different grounding conductors:

• Equipment Grounding Conductor (EGC): The EGC runs with the circuit conductors and bonds all non–current-carrying metal parts of the array (racking, module frames, MLPE chassis) to the equipment grounding terminal or bus. In many racking systems a grounding lug or lay-in connection is provided for the EGC.
• Grounding Electrode Conductor (GEC): The GEC connects the grounding electrode (grounding rod, building electrode, etc.) to the grounded service equipment or separately derived system and is required so the PV array grounding is tied into the grounding electrode system per NEC Article 690.47 and Article 250. Depending on the installation, the PV array grounding conductors are connected to the building grounding electrode system; a separate dedicated DC electrode is used in some installations but is not automatically required for every rooftop array.
• Bonding Jumper: A bonding jumper is used to ensure electrical conductivity between metal parts that need to be bonded, such as connecting two sections of rail or bridging a bond around equipment that is removed for service.

Properly sizing and connecting these conductors is essential for meeting NEC Article 690 and Article 250 and ensuring a safe installation, especially in challenging environments like those discussed in our article on wiring for harsh mountain climates.

Meeting these complex requirements requires up-to-date knowledge and skills. Learn best practices for durable installations. Sign up for our hands-on training.

Frequently Asked Questions (FAQ)

What is the main benefit of using a UL 2703 certified solar racking system?

The primary benefit is that a UL 2703 listed racking system has been evaluated for grounding, bonding, and mechanical performance when used as specified by the manufacturer. When installed per the listing instructions, integrated grounding features can reduce the need for separate module bonding jumpers; installers still must provide an EGC and connect to the grounding electrode system per NEC.

How do NEC 690 grounding requirements apply when I install solar racking?

NEC 690 grounding requirements require that exposed, non-current-carrying metal parts of the PV array (module frames, racking, enclosures, and so forth) be bonded and that PV array equipment grounding conductors be connected to an approved grounding electrode system in accordance with Article 250. Following listed equipment instructions and the NEC will ensure these requirements are met.

What is the difference between an Equipment Grounding Conductor (EGC) and a Grounding Electrode Conductor (GEC) in a solar installation?

The Equipment Grounding Conductor (EGC) is the conductor that ties the non-current-carrying metal parts together and back to the equipment grounding terminal so fault currents can clear. The Grounding Electrode Conductor (GEC) connects the grounding electrode(s) (for example, grounding rods or the building electrode) into the grounding system; per NEC the PV array grounding must be tied into the grounding electrode system where applicable.

Are special tools required to install rooftop solar racking?

While many standard electrician tools are used, several items are essential. A torque wrench is critical to tighten clamps and bolts to manufacturer specifications, preventing over-tightening that can damage modules or under-tightening that can lead to loose components. A good multimeter is necessary for the final electrical continuity test. Additionally, tools like a chalk line, stud finder, and laser level are invaluable for a straight and secure layout.
