The Role of the Neutral Wire: How It Completes a 120V Circuit

In any standard 120V electrical circuit, the fundamental role of the neutral wire is to complete the circuit by providing a safe and intentional return current path back to the power source. Think of it as a two-lane highway for electricity. The ungrounded (hot) conductor delivers the electrical current to a device, and the neutral conductor—which is a specific type of Grounded conductor—carries that current away from the device and back to the electrical service panel. This continuous loop is essential for the proper operation of any alternating current device. Without the neutral wire, the circuit would be incomplete, and electricity would not flow. In a typical residential single-phase system, the neutral is maintained at a near-zero voltage potential relative to the earth, making it a critical component for both functionality and safety, particularly in managing any unbalanced load.

The Fundamentals: What is a Conductor in an Electrical System?

Before diving deep into the neutral’s specific function, it’s essential to understand the basic definition of electrical current and what is a conductor. Electrical current is the flow of charged particles, typically electrons, through a material. A conductor is any material that allows this flow with minimal resistance. In residential and commercial wiring, conductors are usually made of copper or aluminum.

For electricity to do work—like powering a light or an appliance—it must travel in a complete, closed loop. This loop starts at the power source, travels through a conductor to the load (the device using the power), and then travels back to the source through another conductor. In a standard 120V circuit, these primary conductors are:

• The Ungrounded Conductor (Hot): This wire carries the electrical potential from the source to the device.
• The Grounded Conductor (Neutral): This wire carries the current from the device back to the source, completing the circuit.

The Role of the Neutral Wire in a Single-Phase System

In the United States, most residential power is a single-phase system that provides both 120V and 240V. This system originates from a utility-owned center-tapped transformer. The secondary coil of this transformer has a connection in the middle—the center tap—which is intentionally connected to the earth. This grounded center tap becomes the neutral conductor. The two ends of the coil become the two “hot” legs (L1 and L2). The voltage between either hot leg and the neutral is 120V (sometimes colloquially called 110 volt), while the voltage across both hot legs is 240V.

The neutral wire’s primary job is to be the designated return current path for all 120V loads. Because it’s connected to the earth at the transformer and again at the main service panel, it is held at or near zero voltage potential relative to the ground. This makes it different from the hot wire, which carries a potential of 120V.

Neutral vs. Ground: A Critical Distinction for Every Journeyman Electrician

A common point of confusion for those in electrician training is the difference between the neutral wire and the equipment grounding conductor (the bare copper or green wire). While both are connected to the ground, they have fundamentally different jobs. The role of the neutral wire is to carry current under normal operating conditions. The equipment grounding conductor, by contrast, should carry no current at all unless there is a fault.

The equipment ground provides a low-resistance ground-fault path. If a hot wire accidentally touches a metal part of an appliance, the equipment ground directs this fault current back to the panel, tripping the circuit breaker and preventing electric shock. This critical connection between the neutral and ground systems occurs at one specific point: the service disconnect, via a component called the main bonding jumper. This jumper ensures that fault current can get back to the neutral conductor and return to the source transformer, completing the fault circuit. For a deeper dive into these topics, explore our guides on what is a grounded conductor and the principles of grounding vs. bonding according to NEC 250.

Understanding Unbalanced Loads and the Neutral Conductor

In a 120/240V system, the neutral conductor has another critical job: carrying the unbalanced load. The two hot legs (L1 and L2) are 180 degrees out of phase. When 120V loads are perfectly balanced between them (e.g., 10 amps on L1 and 10 amps on L2), the currents cancel each other out, and the neutral carries no current.

However, in the real world, loads are rarely perfectly balanced. If L1 has 15 amps and L2 has 10 amps, there is an unbalanced current of 5 amps. The neutral wire carries this difference (15A – 10A = 5A) safely back to the panel. This concept is especially important in multi-wire branch circuits (MWBCs), where two circuits share a single neutral conductor. To master these concepts, it’s crucial to learn the difference between the grounded conductor and the grounding conductor and how they function. If you work with MWBCs, our guide to multi-wire branch circuits is an essential resource.

How to Calculate Neutral Current in a 120/240V System

For any journeyman electrician, calculating the unbalanced load on the neutral is a key skill. Here is a step-by-step process:

1. Measure the Current on Line 1 (L1): Use an ammeter to determine the amperage being drawn by loads connected to the first hot leg.
2. Measure the Current on Line 2 (L2): Similarly, measure the amperage on the second hot leg.
3. Calculate the Difference: The current on the neutral conductor is the absolute difference between the two values: Neutral Current = |L1 Current – L2 Current|.
4. Verify Conductor Sizing: This calculated current must not exceed the ampacity of the neutral conductor to prevent overheating and potential hazards. Sizing the neutral properly is a core part of system grounding and safety.

The Neutral Bus Bar and the National Electrical Code (NEC)

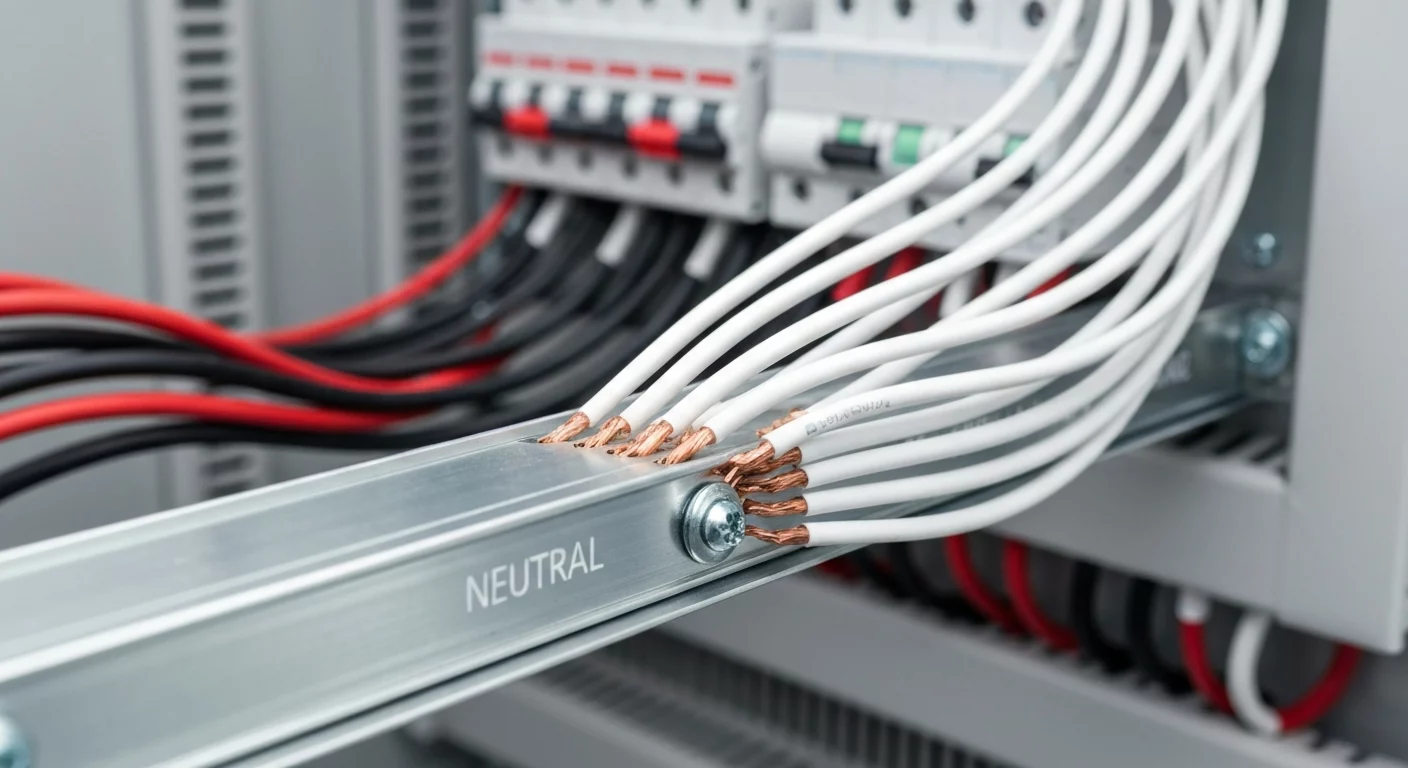

Inside an electrical service panel, all the neutral wires from individual branch circuits connect to a single termination point called the neutral bus bar. This metal bar consolidates all the return paths and connects them back to the main service neutral, which runs with the service lateral to the utility transformer. At the main service panel, the neutral bus bar is bonded (connected) to the panel’s metal enclosure and the grounding system by the main bonding jumper.

The National Electrical Code (NEC) provides strict rules for installing and identifying neutral conductors, which are essential knowledge for any professional reading the nec code book. Key rules include:

• Identification: Grounded conductors must be identified with a continuous white or gray outer finish or three continuous white stripes on other-than-green insulation (NEC 200.6).
• No Switching: A neutral conductor cannot be opened by a switch or breaker unless it is part of a multi-pole breaker that simultaneously opens all ungrounded conductors (NEC 404.2). An open neutral is extremely dangerous.
• Termination: Each neutral must have its own dedicated terminal on the neutral bus bar unless the terminal is specifically listed for more than one conductor (NEC 408.41).
• Separation from Ground: In subpanels (downstream from the main service disconnect), the neutral and ground systems must be kept separate. Bonding them in a subpanel can create dangerous parallel paths for return current on the equipment grounding system. For more information on conductors, see our article on the ungrounded conductor.

Modern Challenges and the Evolving Role of the Neutral Wire

The increasing adoption of smart home technology has highlighted the importance of the neutral wire. Many smart switches, dimmers, and outlets require a constant small amount of power to maintain their connection to a network. This requires a neutral conductor in the switch box to provide a complete circuit for the device’s electronics, a feature often missing in older homes. The industry’s growth and push for updated code reflect these new demands. Staying current with these trends through online electrical courses is crucial for modern electricians.

Primary Sources

• National Fire Protection Association (NFPA) for the National Electrical Code (NEC)

Frequently Asked Questions (FAQ)

What is the main role of the neutral wire in an Alternating Current circuit?

In an AC circuit, the primary role of the neutral wire is to provide a low-impedance return current path to complete the circuit, allowing electricity to flow back to the source after powering a load. It is a current-carrying conductor that is intentionally grounded.

Can a circuit work without a neutral wire?

It depends on the circuit type. A standard 120V circuit, which is a common type of parallel circuit in residential wiring, requires a neutral to function. However, a pure 240V circuit (like for an electric water heater) uses two hot conductors and does not need a neutral, as each hot leg acts as the return path for the other. It’s a common misconception when comparing series vs parallel circuit theories; most household circuits are parallel, and the 120V branches require a neutral.

Why is the neutral conductor also called the Grounded conductor?

The neutral is called the Grounded conductor because it is intentionally connected to the earth (ground) at the power source (utility transformer) and at the service equipment. This grounding stabilizes the system’s voltage and is a cornerstone of safe system grounding as defined by the National Electrical Code (NEC).

What happens if the neutral wire carries an unbalanced load that is too high?

If an unbalanced load results in an unbalanced current that exceeds the ampacity of the neutral wire, the wire can overheat, damaging its insulation and creating a serious fire hazard. This is a critical safety concern in multi-wire branch circuits where an improperly installed circuit (with both hot legs from the same phase) can cause the neutral current to be additive instead of subtractive, quickly overloading it.
