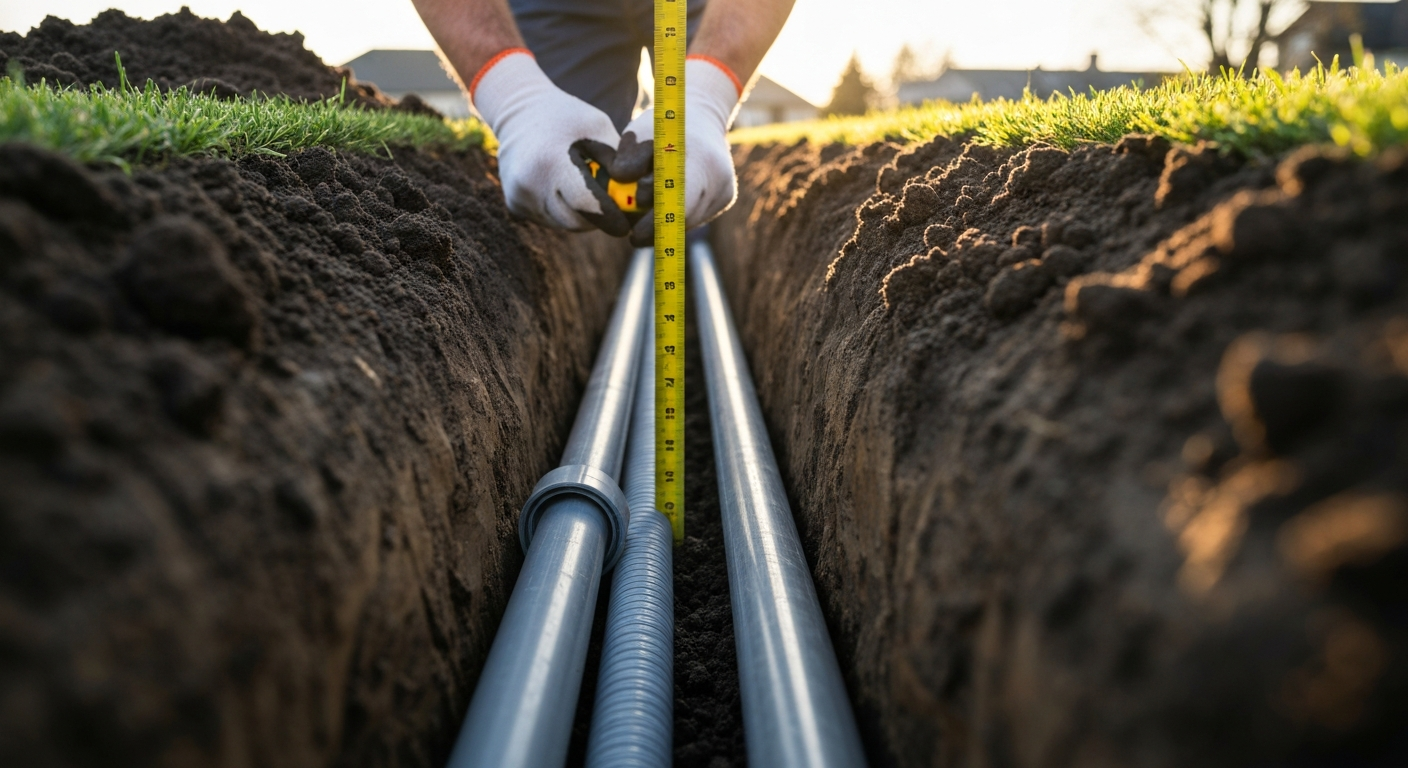

NEC 300.5: A Guide to Underground Installation Burial Depths

What is NEC 300.5?

Section 300.5 of the National Electrical Code (NEC) provides the essential rules and minimum burial depths for underground conductors and cables. The main purpose of these regulations is to provide sufficient protection from physical damage that could occur from routine surface activities like digging, landscaping, or driving. An improper nec buried conduit depth can lead to dangerous utility strikes, costly repairs, and significant safety hazards. The core of this section is NEC Table 300.5, which provides a detailed matrix of burial depths based on the wiring method used and the specific location of the installation. This table is the primary reference electricians use to determine the correct “minimum cover requirements,” which is the NEC’s term for the measurement from the top surface of the buried wire or conduit to the top of the finished grade.

Decoding NEC Table 300.5: Minimum Cover Requirements

NEC Table 300.5 is organized into columns and rows to provide clear guidance for various scenarios. The columns detail the type of wiring method (e.g., direct burial, conduit type), while the rows specify the location of the installation. Correctly cross-referencing these two factors is the key to a compliant installation.

Understanding the Wiring Method Columns

• Column 1: Direct Burial Cables or Conductors: This column applies to cables listed for direct burial without the use of a raceway. These installations generally require the greatest burial depth to compensate for the lack of mechanical protection from a conduit.
• Column 2: Rigid Metal Conduit (RMC) & Intermediate Metal Conduit (IMC): This column covers installations using robust metallic conduits. Because RMC and IMC offer significant physical protection, the nec burial depth requirements are often much shallower than for direct burial.
• Column 3: Nonmetallic Raceways (e.g., Schedule 80 PVC): This column is for nonmetallic conduits like PVC and HDPE. For some applications, the code specifies the use of stronger Schedule 80 PVC, particularly where conductors are emerging from grade. When planning underground PVC runs, it’s also important to account for ground movement; understanding how expansion fittings protect underground PVC conduits is crucial for long-term stability.
• Column 4: Residential branch circuits rated 120 volts or less with GFCI protection and maximum overcurrent protection of 20 amperes: This is a special column that allows for reduced burial depth for specific residential circuits, recognizing the lower risk profile. This is often referred to as the GFCI protection depth exception.
• Column 5: Irrigation and Landscape Lighting Circuits limited to not more than 30 volts: This column covers low-voltage lighting and irrigation control circuits installed in a listed cable or raceway, which are permitted a significantly reduced burial depth in many locations.

Understanding the Location Rows

The rows in Table 300.5 specify different surface locations, each with its own risk profile for potential damage.

• Under a Building: Per NEC 300.5(C), underground cables and conductors installed under a building must be in a raceway. This raceway is required to extend beyond the outside walls of the building. Table 300.5 specifies a minimum cover of 0 inches for specific raceways like RMC, IMC, or PVC when installed under a building, meaning they can be in direct contact with the earth beneath the building’s foundation.
• Under Streets, Highways, Roads, Alleys, Driveways, and Parking Lots: These high-traffic areas require the greatest burial depth (typically 24 inches) to protect circuits from the weight and vibration of vehicles.
• One- and Two-Family Dwelling Driveways: For residential driveways, the required depth is often reduced (typically to 18 inches), reflecting a lower traffic load than public streets.
• In or Under Airport Runways: These critical areas have specific, stringent requirements to ensure maximum safety and reliability.

Key Considerations and Exceptions in NEC 300.5

Beyond the table, NEC 300.5 contains several subsections that address specific scenarios and modify the general rules.

Protection from Physical Damage

Where conductors and cables emerge from grade, they must be protected from physical damage. NEC 300.5(D) requires this protection to extend from the minimum cover requirements depth up to a point at least 8 feet above grade. The choice of material, like RMC, IMC, or Schedule 80 PVC, is critical. The durability of PVC in these situations is a key factor, and it’s worth reviewing the latest 2023 NEC rules for PVC conduit use in concrete and high-stress applications to ensure compliance.

Wet Location Requirements

By definition, all underground enclosures and raceways are considered a wet location per NEC 300.5(B). This mandates that all conductors and cables used in these installations must be listed for wet locations. Insulated conductors must be of a type like THWN-2, XHHW-2, or other listed types suitable for this environment. Choosing the right conduit is also part of managing environmental risks, especially since some soil conditions can be surprisingly harsh. Knowing how the 2023 NEC has changed LFNC conduit use in corrosive environments can help you make the right choice for challenging job sites.

Backfill Requirements and Warning Ribbon Placement

NEC 300.5(F) specifies that backfill requirements must not include large rocks, paving materials, or other debris that could damage conduits or cables. A layer of fine sand is often used as a bed and initial cover to provide protection. Furthermore, for underground service conductors that are not encased in concrete and are buried 18 inches (450 mm) or more, a warning ribbon placement is required per NEC 300.5(D)(4). This ribbon must be placed in the trench at least 12 inches (300 mm) above the underground installation to provide a visual warning for future excavators. Many professional electricians consider it a best practice to use conduit for all underground work, even when direct burial is allowed, as it provides superior protection and simplifies future circuit modifications.

Step-by-Step: How to Determine Correct Burial Depth Using Table 300.5

1. Identify the Wiring Method: First, determine the type of installation you are performing. Are you using direct burial cable like Type UF, or will you be running conductors inside a raceway like RMC, IMC, or PVC?
2. Identify the Circuit Type & Voltage: Note the circuit’s voltage and purpose. Is it a main underground service entrance feeder, a branch circuit, or a low-voltage system? If it is a residential branch circuit rated 120 volts and 20 amps or less with GFCI protection, you may be able to use the reduced depths in Column 4.
3. Determine the Location: Look at the physical location where the conduit or cable will be buried. Will it pass under a driveway, a commercial parking lot, or just open land?
4. Cross-Reference on NEC Table 300.5: Find the row that corresponds to your location (e.g., “One- and Two-Family Dwelling Driveways”). Then, find the column that matches your wiring method (e.g., “Nonmetallic Raceways”). The value where the row and column intersect is your minimum cover requirement. For example, a PVC conduit (nonmetallic raceway) under a residential driveway requires a minimum cover of 18 inches.
5. Check for Exceptions: Review the notes in Table 300.5 and the subsections in 300.5 to see if any special conditions apply that might alter the required depth. For example, a concrete cap of 2 inches or more can sometimes reduce the required depth by 6 inches.

Adhering to the national electrical code is non-negotiable for safety and professional integrity. Ensure your underground work is safe and compliant. Learn more with our NEC courses.

The Cost of Getting it Wrong: Utility Strikes and Safety

Failure to follow NEC 300.5 doesn’t just risk a failed inspection; it creates severe risks. According to the Common Ground Alliance (CGA) 2023 DIRT Report, excavation-related damages to underground utilities are a persistent problem. For the third consecutive year, the same six root causes accounted for 76% of all damage incidents. A primary cause, accounting for over 26% of damages, is the failure to notify a one-call center before digging. The electrical hazards are just as real; between 2011 and 2021, data from U.S. Bureau of Labor Statistics and OSHA reported 11 worker fatalities resulting from contact with underground power lines. Proper burial depth is the first line of defense against these tragic and costly accidents.

Frequently Asked Questions (FAQ)

What is the minimum burial depth for a service lateral according to nec 300.5?

The minimum burial depth for a service lateral depends on the wiring method and location as defined in NEC Table 300.5. For a common installation using PVC conduit under a yard, the depth is typically 18 inches. If it’s a direct burial cable, the depth increases to 24 inches. Always consult the table for your specific scenario.

Can you use Schedule 40 PVC for an underground service entrance?

Yes, Schedule 40 PVC is often permitted for underground portions of a service entrance, but where the conduit emerges from the ground, it must be protected from physical damage. This usually requires transitioning to a stronger material like Schedule 80 PVC, RMC, or IMC from the burial depth up to 8 feet above grade, as specified in NEC 300.5(D).

What are the nec burial depth requirements for low-voltage wiring?

Low-voltage wiring also has burial depth requirements. As per Column 5 of NEC Table 300.5, a reduced burial depth of 6 inches is permitted for circuits for control of irrigation and landscape lighting limited to not more than 30 volts. This 6-inch depth applies to most locations, but it increases for higher-risk areas, such as 12 inches under a one- or two-family dwelling driveway and 18 inches under airport runways. Always consult the table for your specific installation.

What did the 2023 NEC change about underground conduits?

A notable clarification in the 2023 edition of the nec code concerned the use of Electrical Metallic Tubing (EMT) in underground installations. While previously allowed in contact with earth under certain conditions, the code now explicitly permits EMT in direct burial applications, provided it is protected from corrosion and used with fittings identified for direct burial, as specified in NEC 358.10(B). This gives electricians another option for underground raceways, though many still prefer PVC or RMC for durability in buried applications.
